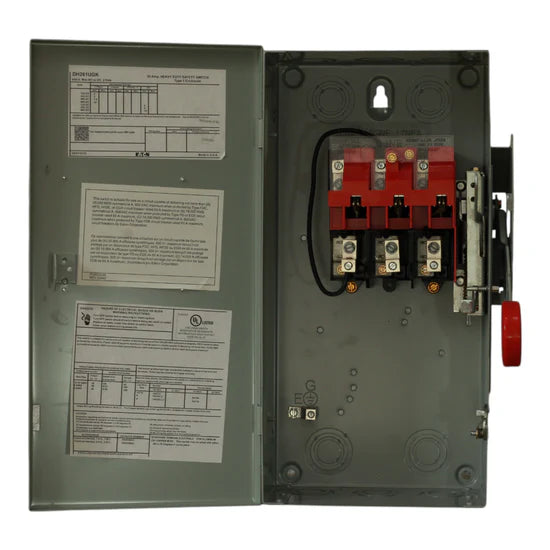

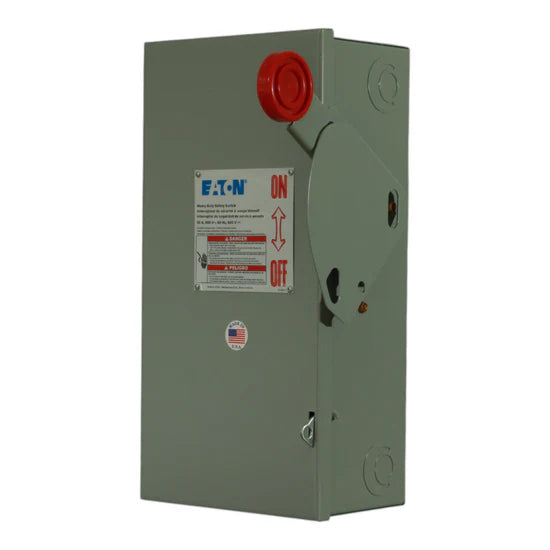

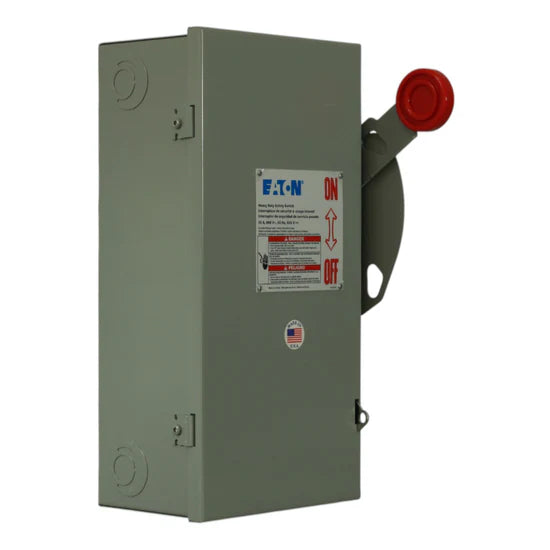

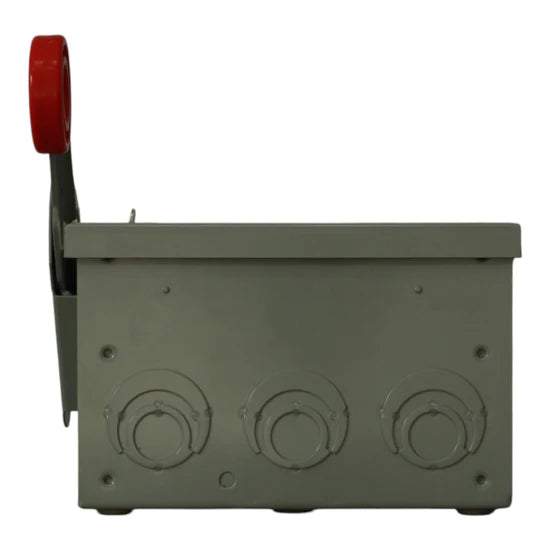

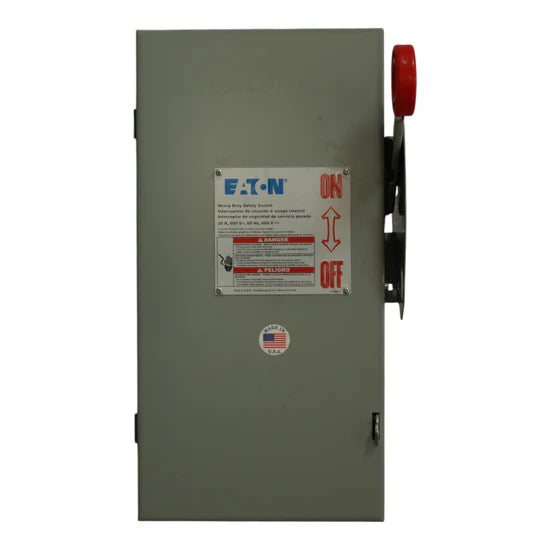

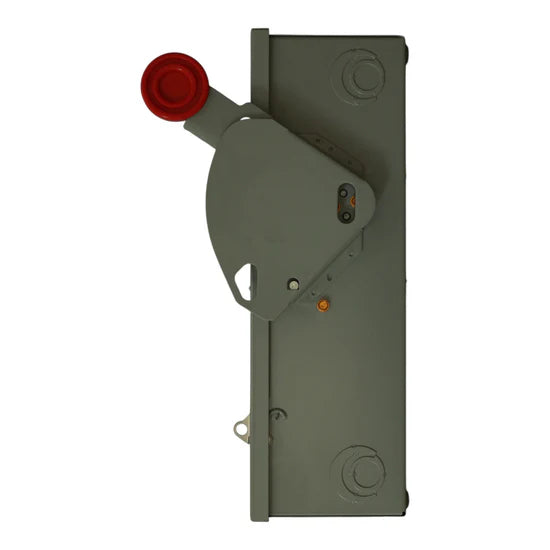

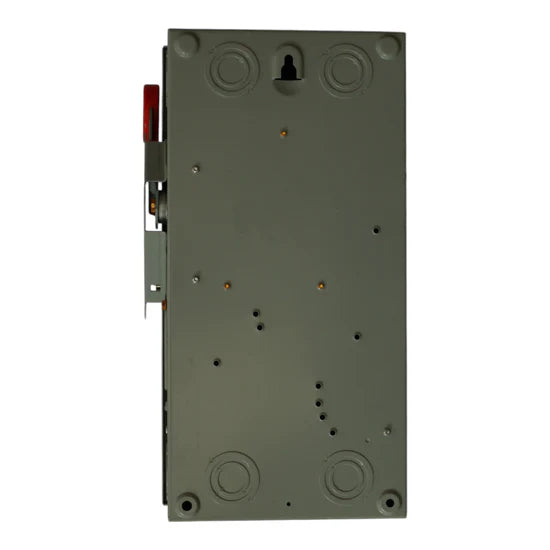

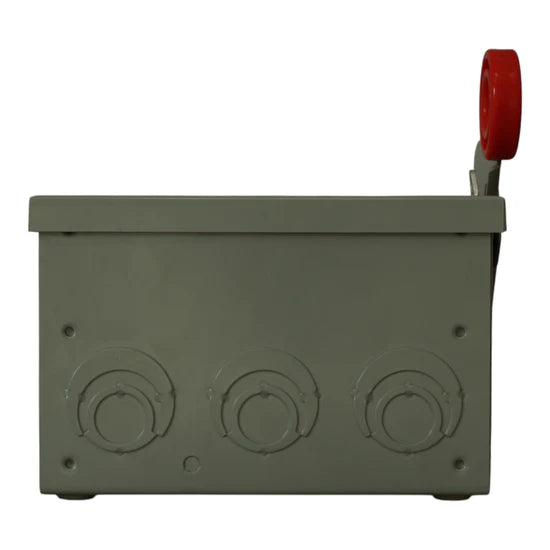

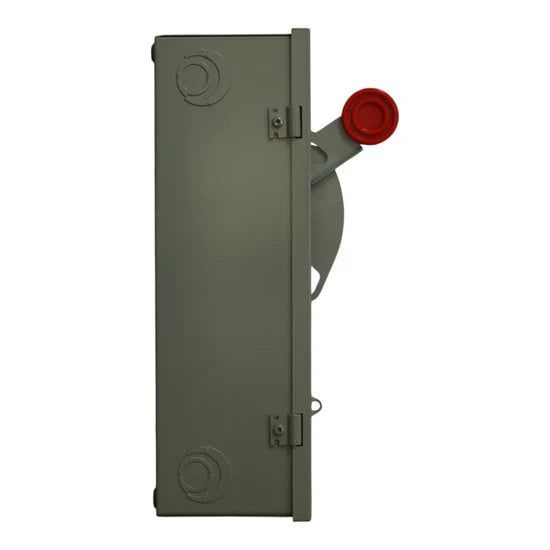

Eaton DH261UGK 30A 2-Pole Non-Fusible Heavy Duty Safety Switch – Surface Mount – 600V

The Eaton DH261UGK non-fusible heavy duty safety switch provides reliable 30A, 2-pole disconnection for 600V circuits. Designed for indoor service entrance and industrial applications, it features a NEMA 1 painted steel enclosure, single-throw operation, and supports neutral or ground lug kits. Ideal for branch circuit protection, motor disconnects, and lock-out/tag-out (LOTO) procedures, it ensures safety and durability in commercial and industrial settings.

Voltage and Rating

• Amperage: 30 Amps
• Poles: 2-Pole
• Voltage Rating: 600 Volts AC
• Horsepower Ratings: 3 HP at 240V AC TD 1-Phase, 7.5 HP at 480V AC TD 1-Phase, 10 HP at 600V AC TD 1-Phase, 15 HP at 600V DC
• Number of Wires: 2

Key Specifications

• Switch Type: Non-Fusible, Single-Throw
• Mounting Type: Surface Mount
• Enclosure Rating: NEMA 1 Indoor
• Enclosure Material: Painted Steel
• Application: Branch circuit protection, motor disconnects, LOTO
• Compatible Systems: Service entrance and industrial circuits

Technical Specifications

• Dimensions: Height: 15.81 in, Width: 8.81 in, Depth: 9.89 in
• Weight: 17.0 lbs
• Certifications: UL Listed, NEC 230.62(C) Compliant Barrier

Product Data

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: DH261UGK
  • UPC: 782113205472
