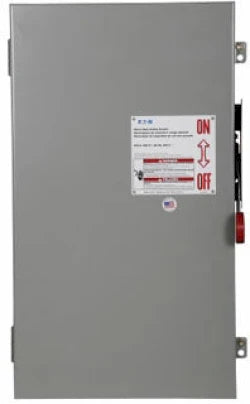

Eaton DH364UGK Heavy Duty Safety Switch – Eaton 200A 600V 3‑Pole Non‑Fusible Safety Switch NEMA 1

In stock
$450.00
Condition
Secure transaction
FREE & fast shipping on orders over $99
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

Description

DH364UGK
The DH364UGK is an Eaton 200 amp, 3-pole non-fusible safety switch designed for heavy commercial and industrial low voltage electrical isolation. It features a painted steel NEMA 1 indoor enclosure and provides a manual means to connect or disconnect electrical loads. This single-throw switch includes three wires and three poles with no fusible elements, delivering reliable service entrance and power distribution control.

Key Specifications

  • Amperage: 200 A

  • Voltage Rating: 600 V AC

  • Poles: 3

  • Wires: 3

  • Fusible: No (Non-fusible)

  • Enclosure: Painted steel, NEMA 1

  • Interrupt Rating: 200 kA

  • Mounting Type: Surface mount

  • Series/Frame: Heavy Duty Non-Fusible

  • Certifications: UL 98

  • Application: Heavy commercial, industrial, service entrance

Specifications

  • Part Number: DH364UGK

  • Manufacturer: Eaton

  • Category: Switch

  • Item Subcategory: Disconnect

  • Family: Heavy Duty Safety Switch

  • Type: Non-fusible

  • Voltage: 600 AC

  • Amperage: 200

  • Phase: 3

  • Poles: 3

  • AIC Rating: 200 kA @ 600 V

  • Fuse Class: Non-fusible

  • Configuration: Single

  • Switch Style: Non-fusible

  • NEMA Rating: NEMA 1

  • Compatible Frames: Standard Safety Switch Frames

Product Data

  • UPC: 782113206806

  • GTIN: 00782113206806

  • Country of Origin: United States

  • Dimensions: ~11.26 in (D) x 27.66 in (H) x 16 in (W)

  • Weight: ~40 lbs
