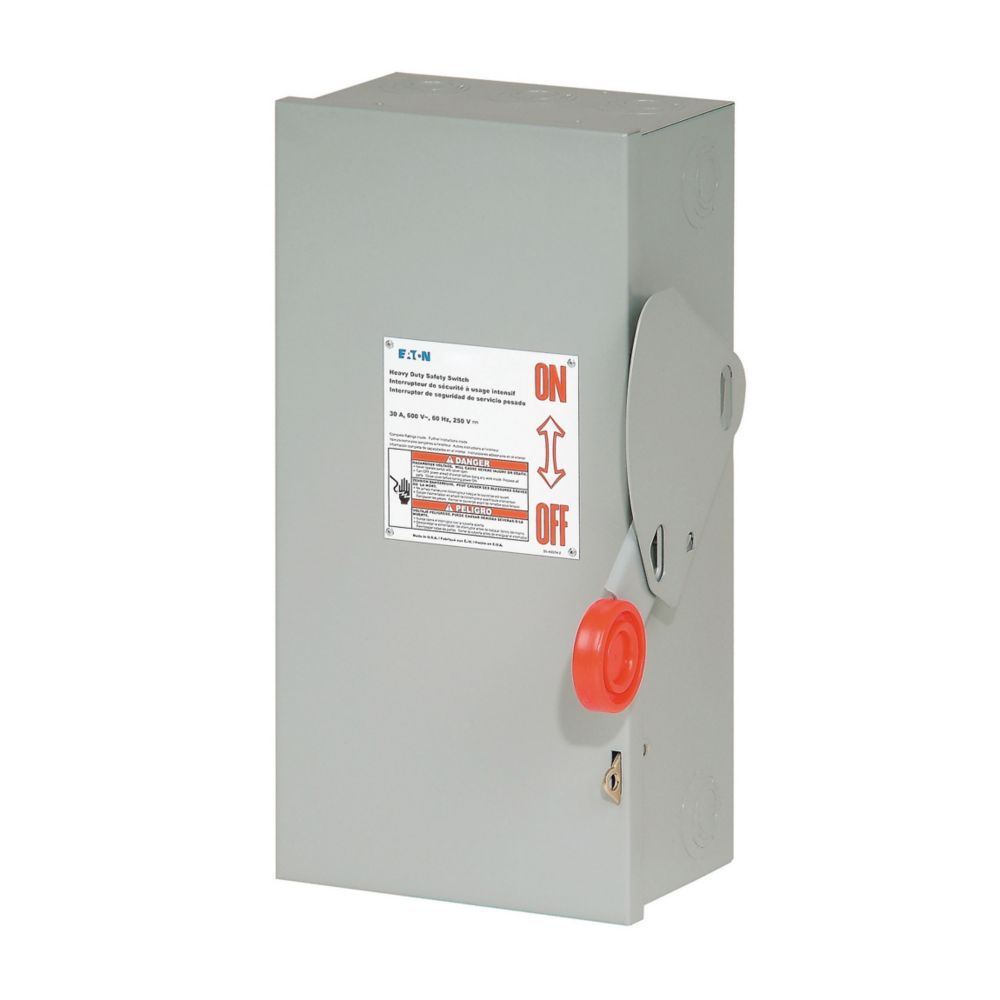

Eaton DH364URK Heavy Duty Non-Fusible Safety Switch – 200A, 3-Pole, 600V, NEMA 3R

The Eaton DH364URK heavy duty non-fusible safety switch is designed for commercial and industrial disconnect applications requiring reliable equipment isolation and high-performance switching capability. This single-throw non-fusible safety switch features a rugged NEMA 3R enclosure for outdoor use and provides dependable service entrance and motor disconnect functionality. Its painted galvanized steel construction ensures durability in demanding environments.

Electrical Ratings

• Current Rating: 200A
• Voltage Rating: 600V AC
• Number of Poles: Three-pole
• Number of Wires: 3
• Fuse Configuration: Non-fusible
• Maximum Horsepower Ratings:
  • 15 hp at 240 Vac TD 1 Phase
  • 50 hp at 480 Vac TD 1 Phase
  • 50 hp at 600 Vac TD 1 Phase
  • 60 hp at 240 Vac TD 3 Phase
  • 125 hp at 480 Vac TD 3 Phase
  • 150 hp at 600 Vac TD 3 Phase
  • 40 hp at 250 Vdc

Key Specifications

• Manufacturer: Eaton
• Catalog Number: DH364URK
• UPC: 782113206813
• Product Type: Non-fusible safety switch
• Product Category: Heavy Duty, Non-Fusible
• Type: Single-throw
• Standards: UL Listed
• Compliance: NEC 230.62(C) compliant barrier
• Utility Approval: Public Service Company of New Mexico (PNM)
• Enclosure Type: NEMA 3R
• Enclosure Material: Painted galvanized steel
• Warranty: Eaton Selling Policy 25-000

Physical Details

• Product Length/Depth: 11.25 in
• Product Height: 27.63 in
• Product Width: 16 in
• Product Weight: 35 lb

Product Data

• Application: Commercial and industrial power disconnect and service entrance applications
• Installation Use: Indoor and outdoor heavy-duty disconnect installations
• Compatibility: Suitable for service entrance use with neutral or ground lug kit installed
• Safety Feature: Provides visible disconnect for equipment isolation and maintenance safety
• Construction Benefit: NEMA 3R weather-resistant enclosure for outdoor durability
• System Function: Reliable switching and isolation for high-capacity electrical systems
