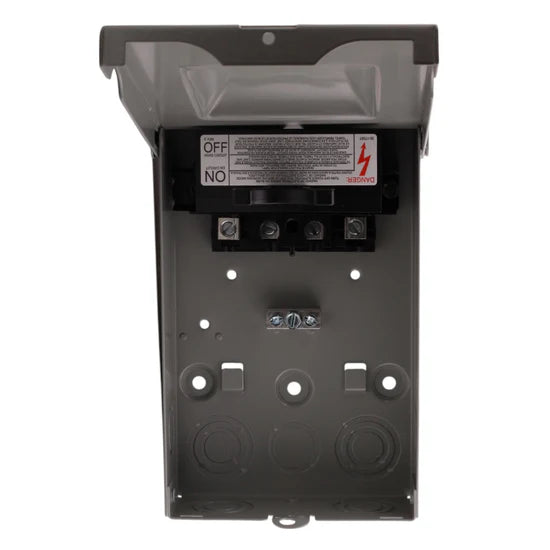

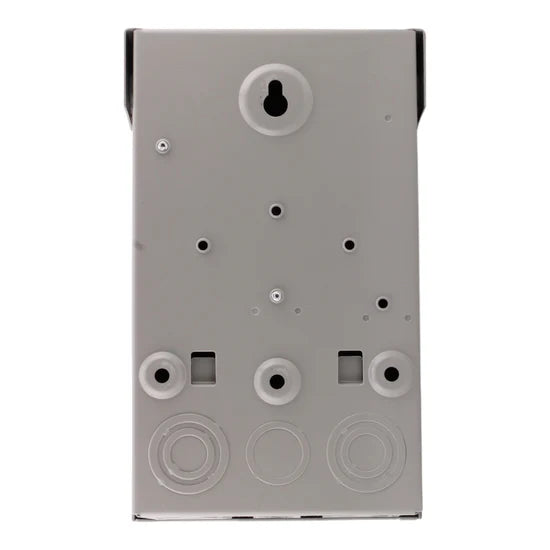

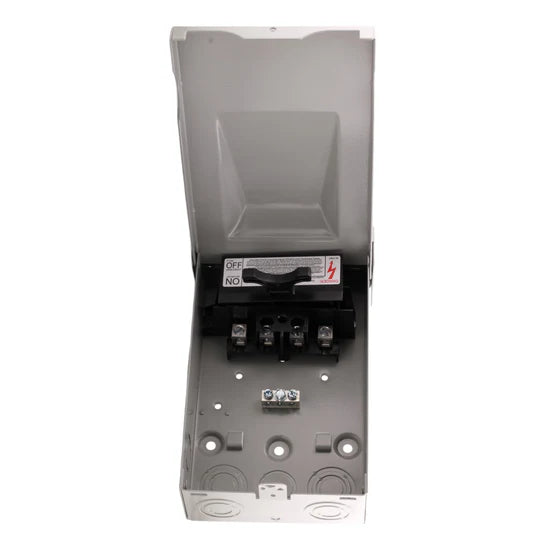

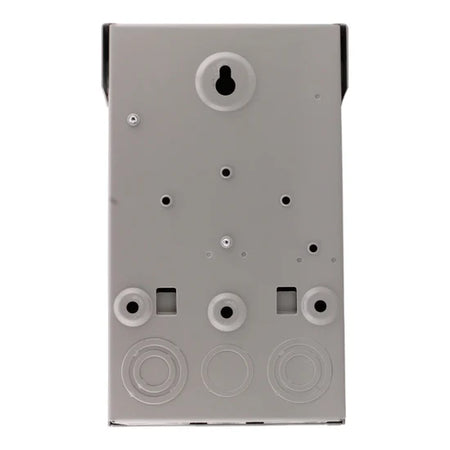

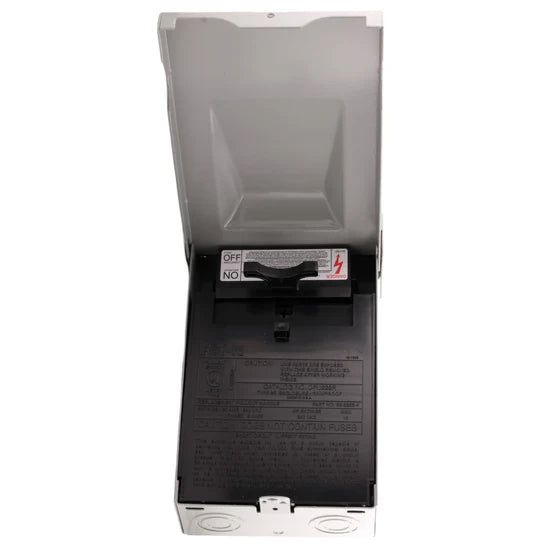

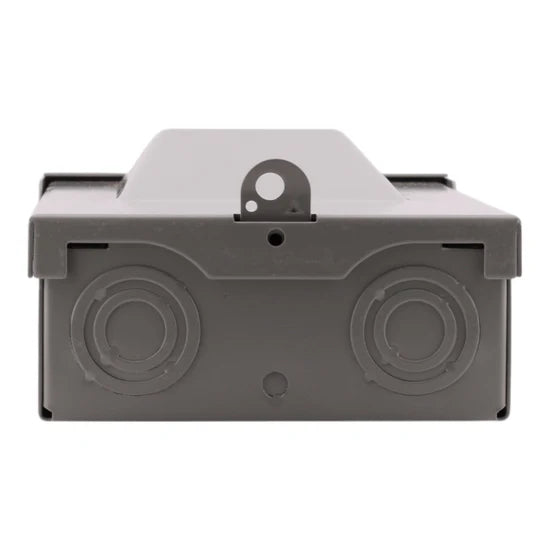

The Eaton DPU222R non-fused pullout air conditioning disconnect provides dependable 60A, 2-pole disconnection for 120/240V air conditioning units and heat pumps. Designed for outdoor use, it features a rugged NEMA 3R galvanized steel enclosure and a removable pullout handle for safe servicing in residential and light commercial installations.
Voltage and Rating
- Amperage: 60 Amps
- Poles: 2-Pole
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 10 kAIC
- Horsepower Rating: 10 hp at 240V
Key Specifications
- Device Type: Non-Fused Pullout Air Conditioning Disconnect
- Mounting Type: Surface Mount
- Product Range: Air Conditioning Disconnects
- Application: AC units, heat pumps, and outdoor disconnecting means
- Enclosure Rating: NEMA 3R (weather resistant)
Technical Specifications
- Terminal Wire Size: #14–3 AWG Cu/Al
- Operating Temperature: 60°C to 75°C
- Enclosure Material: Galvanized Steel
- Color: ANSI 61 Gray
- Certifications: UL Listed, CSA Certified
Product Data
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: DPU222R
- UPC: 782113926858
Dimensions
-
- Height: 2.0 in
- Width: 5.5 in
- Depth: 9.0 in
- Weight: 3.0 lbs
