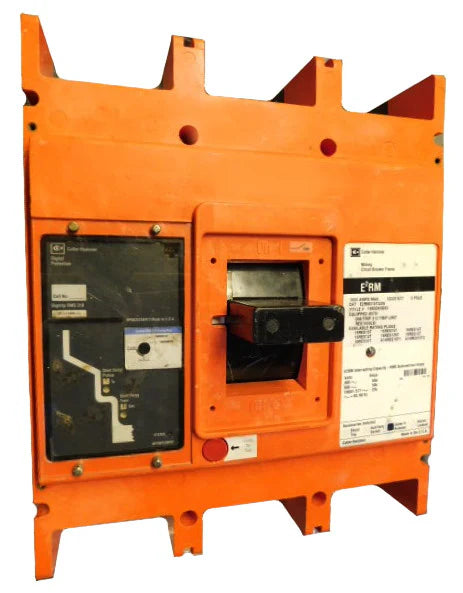

Eaton E2RM320T33W 2000A 3P Mining MCCB – Bolt On – 1000VAC

The Eaton E2RM320T33W is a high-performance molded case mining circuit breaker (MCCB) designed for demanding industrial and mining environments. Featuring the sturdy E2RM frame, this breaker incorporates a non-interchangeable electronic trip unit with LS (Long-Time, Short-Time) functions for reliable protection against overloads and short circuits. Rated for 2000 amperes, it offers high interrupting capacity to ensure safe and continuous operation of critical power distribution systems up to 1000VAC.

Product Specifications

• Brand: Eaton / Cutler Hammer
• Model: E2RM320T33W
• Rated Current: 2000A Max
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Mining Circuit Breaker (MCCB)
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Frame Type: R

Technical Specifications

• Trip Unit Type: Non-Interchangeable Electronic
• Trip Functions: LS (Long-Time, Short-Time)
• Trip Setting: 2–8 times the continuous ampere rating
• Connection Type: Bolt-On
• Suitable for high-voltage industrial and mining applications

Voltage and Ratings

• Rated Operational Voltage: 1000VAC
• Maximum Current Rating: 2000 Amperes
• Interrupting Capacity:
• • 65 kA @ 480VAC
  • 50 kA @ 600VAC
  • 25 kA @ 1000VAC

Product Data

• Application: Mining and high-voltage industrial power distribution
• Standard Compliance: Industry-standard MCCB requirements
• Warranty: 1 Year
• Lug Type: Standard Lug
• Installation: Panel-mounted, bolt-on connection

Important Note

This circuit breaker requires a compatible rating plug to function and will not operate without one. Ensure the correct rating plug is selected according to your system requirements before ordering. Product images are for reference only and may not reflect the exact configuration. Accessories ordered with the breaker can be installed prior to shipment at no additional cost—please provide complete configuration details during checkout. Installation must be performed by qualified personnel in accordance with all applicable electrical codes and safety standards.
