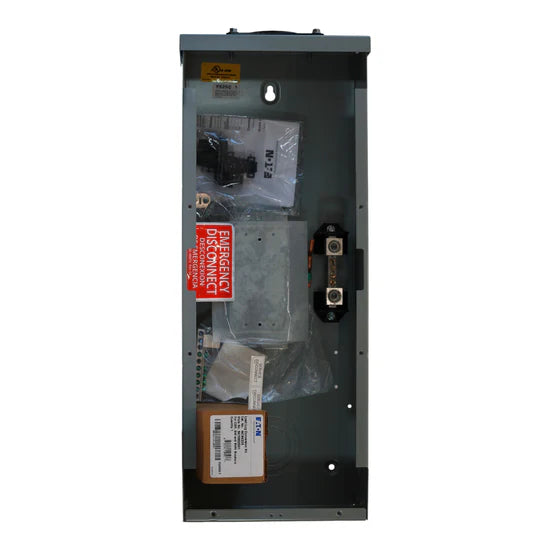

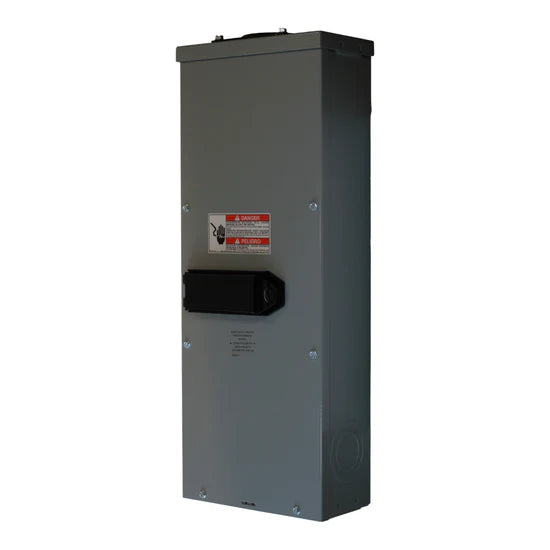

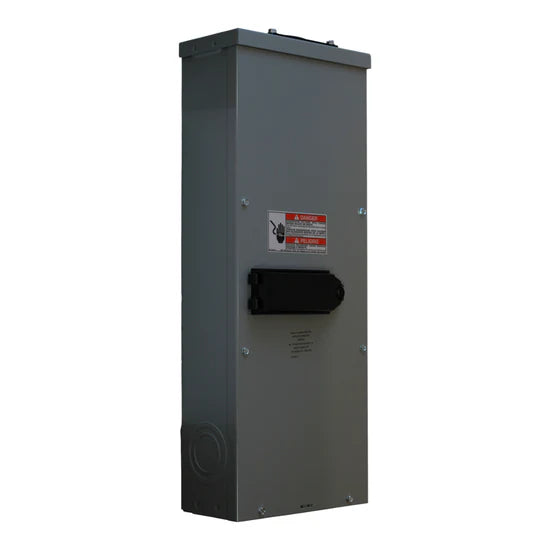

Eaton ECB225R 225A 2P Circuit Breaker Enclosure – Surface Mount – 240V

The Eaton ECB225R is a 225 Amp NEMA 3R outdoor surface-mount circuit breaker enclosure designed for 240V single-phase service entrance applications. Built for durability and weather resistance, it provides secure housing for compatible Eaton main breakers in residential and light commercial installations.

Voltage and Rating

• Current Rating: 225 Amps
• Voltage Rating: 240 Volts AC
• Phase: 1-Phase
• Enclosure Rating: NEMA 3R (Outdoor, Rainproof)

Key Specifications

• Product Type: Circuit Breaker Enclosure
• Application: Service Entrance Rated

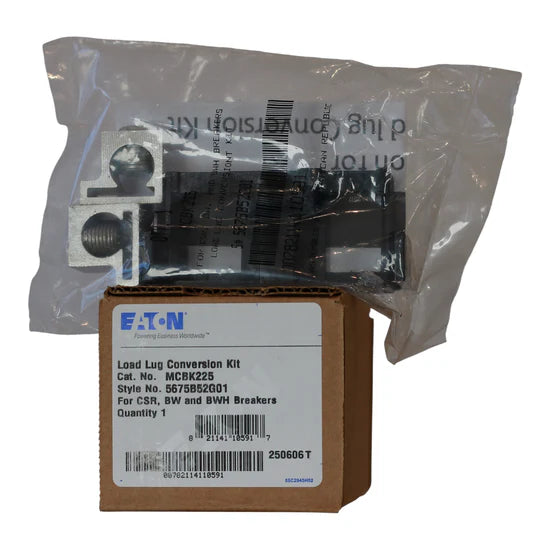

• Compatible Breakers: Eaton BW, BWH, CSR (2-Pole)
• Series: ECB Series

Technical Specifications

• Mounting Mode: Surface
• Designed For: 2-Pole Main Breakers
• Construction: Weather-resistant outdoor enclosure
• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton

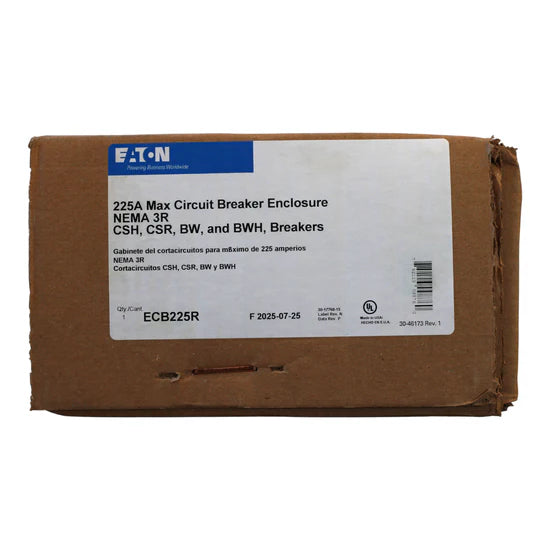

• Model Number: ECB225R
• UPC: 782113098760

Dimensions

• Height: 23.69 in
• Width: 9.31 in
• Depth: 5.44 in
• Weight: 13.7 lbs
