Eaton ED2175S22 175A 2P Molded Case Circuit Breaker – Bolt On – 240VAC

The Eaton ED2175S22 is an ED frame style molded case circuit breaker engineered to provide dependable overcurrent protection for commercial and industrial electrical systems. Equipped with a thermal magnetic non-interchangeable trip unit, this breaker delivers reliable protection against overloads and short circuits. With a 175-ampere rating at 40°C and a 2-pole configuration, the breaker is designed to operate efficiently on 240VAC systems. Its high interrupting capacity ensures strong fault protection, while the standard line and load end terminals simplify installation and wiring.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 175A
• Poles: 2
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• ED Frame Molded Case Circuit Breaker design
• 2-Pole configuration for dual circuit interruption
• Bolt-on mounting for secure panelboard installation

Voltage and Ratings:

• Rated Voltage: 240VAC @ 50/60Hz
• Maximum Voltage: 600V
• Interrupting Capacity:
• • 65 kA @ 240VAC
  • 10 kA @ 125VDC

Product Data:

• Model Number: ED2175S22
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: ED
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

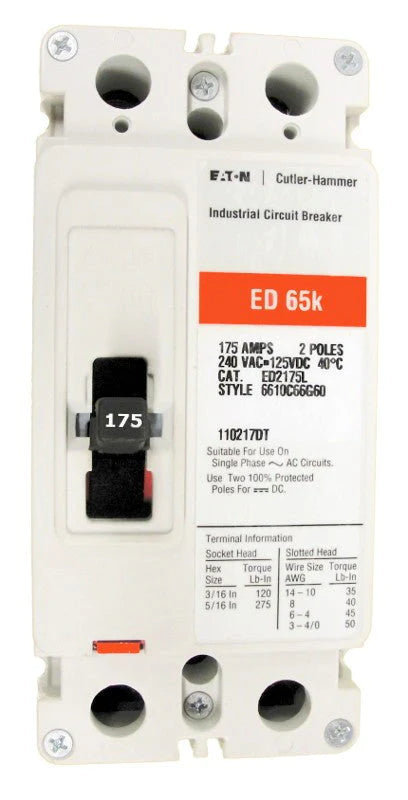

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories together with your breaker, simply include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
