The Eaton ED2225L is an ED frame molded case circuit breaker designed to deliver dependable circuit protection in commercial and industrial electrical systems. It features a thermal magnetic non-interchangeable trip unit that provides reliable response to overload and short-circuit conditions. Rated at 225 amperes at 40°C with a 2-pole configuration, the breaker supports operation on 240VAC power systems. Its high interrupting capacity enhances safety in demanding electrical environments, while standard line and load end terminals allow for efficient and secure installation.
Product Specification:
- Manufacturer: Eaton / Cutler Hammer
- Warranty: One Year
- Connection: Bolt On
- Frame Type: F
- Amperage: 225A
- Poles: 2
- Standard Lug Type: Line and Load
Technical Specification:
- Thermal Magnetic Non-interchangeable Trip Unit
- ED Frame Molded Case Circuit Breaker
- 2-Pole configuration for dual circuit protection
- Bolt-on mounting design for secure panel installation
Voltage and Ratings:
- Rated Voltage: 240VAC @ 50/60Hz
- Maximum Voltage: 600V
- Interrupting Capacity:
-
- 65 kA @ 240VAC
- 10 kA @ 125VDC
Product Data:
- Model Number: ED2225L
- Breaker Type: Molded Case Circuit Breaker
- Frame Style: ED
- Operating Temperature Rating: 40°C
- Terminals: Standard Line and Load End Terminals
Important Note:

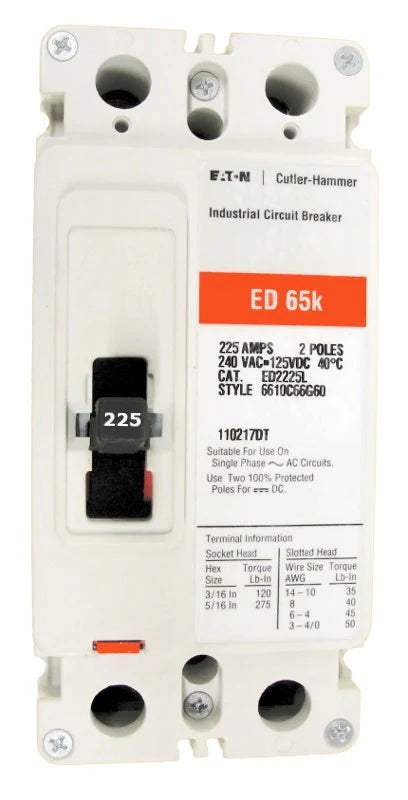

This product image represents a base model and is provided for identification purposes only. If you are ordering accessories together with your breaker, include the necessary configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
