The Eaton EDB3125L is an EDB frame molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial electrical distribution systems. It features a thermal magnetic non-interchangeable trip unit that offers reliable protection against overloads and short circuits. With a current rating of 125 amperes at 40°C and a 3-pole configuration, the breaker is well suited for 240VAC applications at 50/60Hz. Its durable construction and standard line and load end terminals ensure secure electrical connections and straightforward installation in panelboards and distribution equipment.
Product Specification:
- Manufacturer: Eaton / Cutler Hammer
- Warranty: One Year
- Connection: Bolt On
- Frame Type: F
- Amperage: 125A
- Poles: 3
- Standard Lug Type: Line and Load
Technical Specification:
- Thermal Magnetic Non-interchangeable Trip Unit
- EDB Frame Molded Case Circuit Breaker construction
- 3-Pole configuration for three-phase circuit protection
- Bolt-on mounting design for secure and stable installation
Voltage and Ratings:
- Rated Voltage: 240VAC @ 50/60Hz
- Maximum Voltage: 600V
- Interrupting Capacity:
-
- 22 kA @ 240VAC
- 10 kA @ 125VDC
Product Data:
- Model Number: EDB3125L
- Breaker Type: Molded Case Circuit Breaker
- Frame Style: EDB
- Operating Temperature Rating: 40°C
- Terminals: Standard Line and Load End Terminals
Important Note:

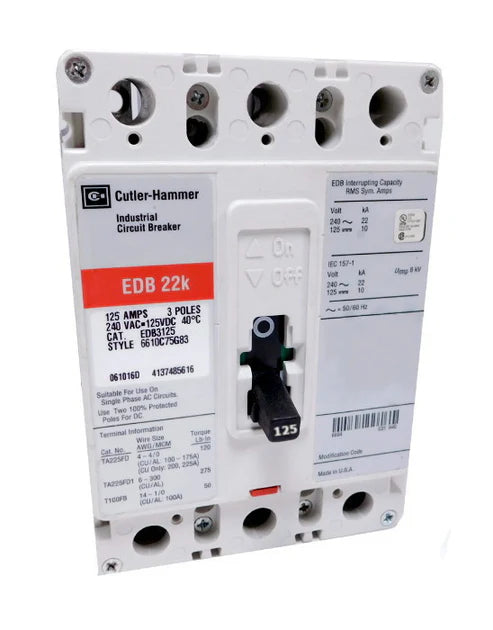

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories together with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
