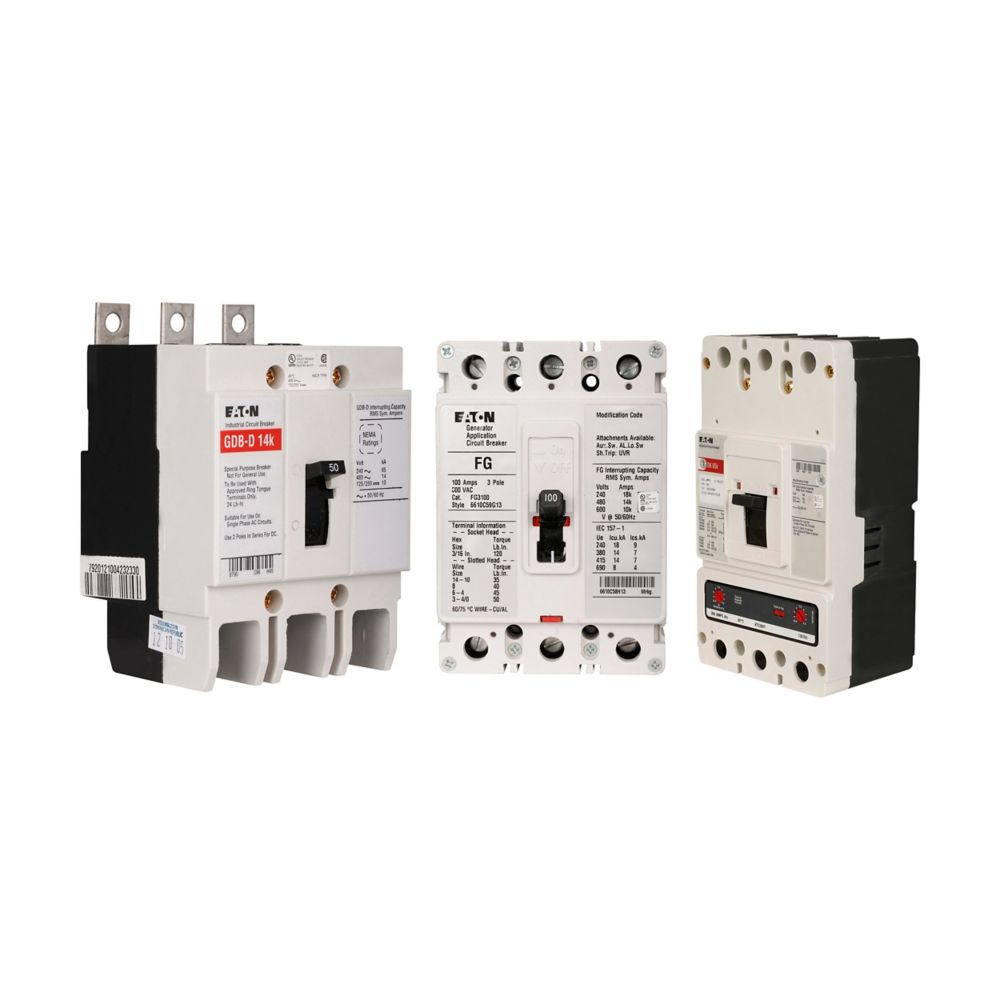

Eaton EDB3200 Series C Molded Case Circuit Breaker – 200A, 3-Pole, 240VAC, 22 kAIC

The Eaton EDB3200 Series C molded case circuit breaker is designed for dependable electrical protection in industrial and commercial power distribution systems. It provides reliable thermal magnetic protection against overloads and short circuits, ensuring safe and stable operation of electrical infrastructure. Built on Eaton’s Series C platform, it delivers consistent performance and compatibility with standard distribution equipment.

Electrical Ratings

• Current Rating: 200A
• Voltage Rating: 240 Vac / 125 Vdc
• Frequency Rating: 50–60 Hz
• Number of Poles: Three-pole
• Interrupt Rating: 22 kAIC at 240 Vac
• Trip Type: T186
• Circuit Breaker Frame Type: Complete breaker (Frame F)
• Circuit Breaker Type: ED

Key Specifications

• Manufacturer: Eaton
• Catalog Number: EDB3200
• UPC: 782116152742
• Product Type: Molded case circuit breaker
• Series: Series C
• Terminals: Load side
• Standards: UL Listed
• Warranty: Eaton Selling Policy 25-000

Physical Details

• Product Length/Depth: 3.38 in
• Product Height: 6 in
• Product Width: 4.13 in
• Product Weight: 3 lb

Product Data

• Application: Industrial and commercial electrical distribution protection
• Installation Use: Series C molded case breaker systems
• Function: Provides overload and short-circuit protection for electrical circuits
• System Compatibility: Designed for Eaton Series C panel and distribution systems
• Safety Feature: Reliable fault interruption with 22 kAIC capacity for high
