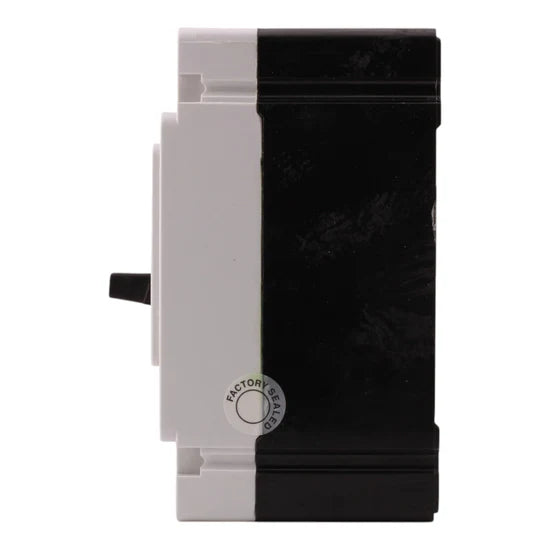

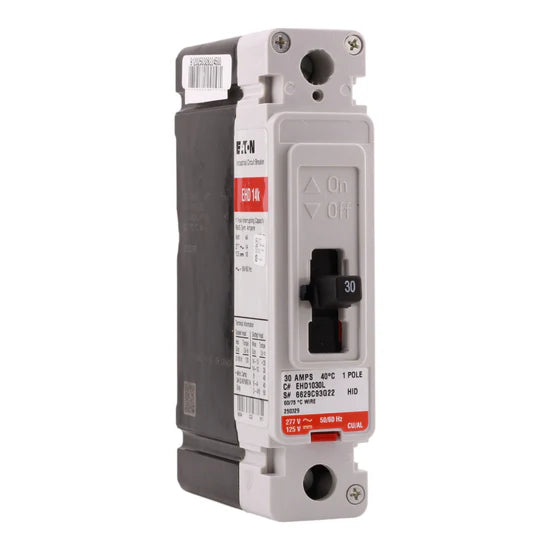

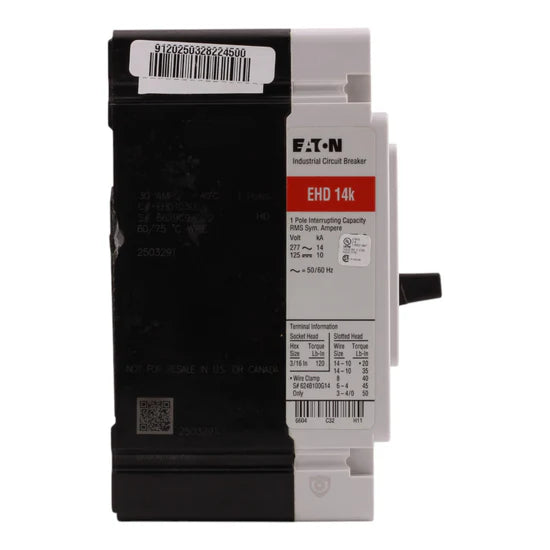

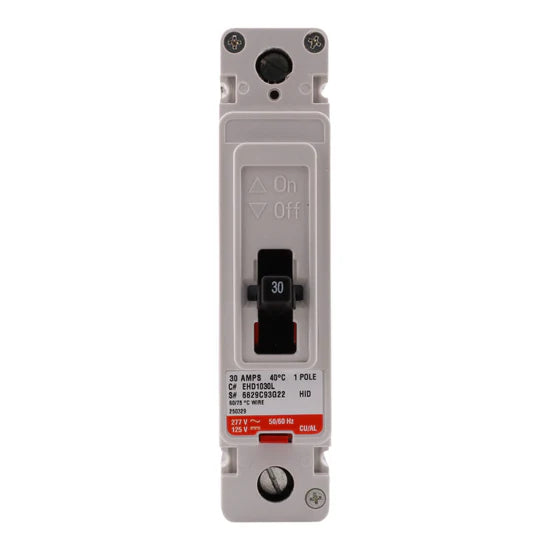

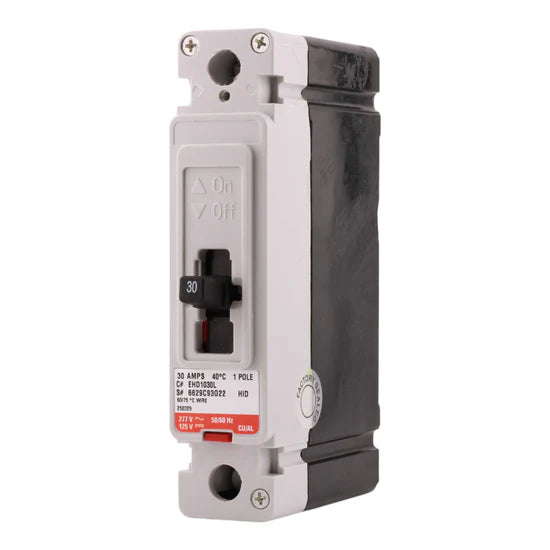

Eaton EHD1030L 30A 1P Molded Case Circuit Breaker – Series C F-Frame

The Eaton EHD1030L is a 30 Amp single-pole molded case circuit breaker designed for dependable overcurrent protection in commercial and industrial power distribution systems. Part of the Series C F-frame family, it features a fixed thermal and fixed magnetic trip (T186) for consistent performance. With high interrupting capacity and line/load terminals, this breaker is well suited for demanding applications requiring reliable circuit protection.

Voltage and Rating:

• Current Rating: 30 Amps
• Voltage Rating: 240/480 Volts AC
• Frequency: 50/60 Hz

Key Features:

• Breaker Type: Molded Case Circuit Breaker
• Trip Type: Fixed Thermal, Fixed Magnetic (T186)
• Frame Type: F-Frame
• Poles: 1-Pole
• Interrupt Rating:
• 18 kAIC at 240 VAC
• 14 kAIC at 480 VAC

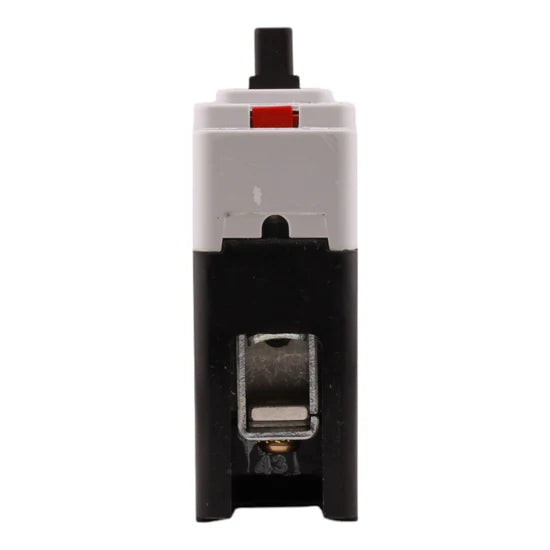

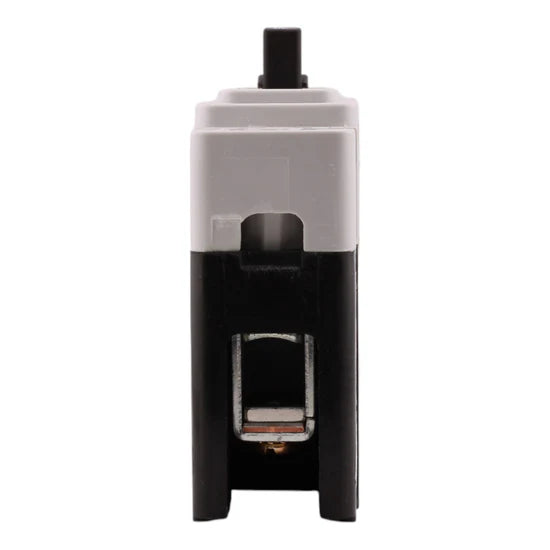

• Terminals: Line and Load

Physical Specifications:

• • Height: 6 in
  • Width: 1.38 in
  • Depth: 3.38 in
  • Weight: 2 lbs

Product Data

Manufacturer: Eaton
Brand: Eaton
Series: Series C (F-frame)
Model Number: EHD1030L
UPC: 786679156803
Certifications: UL Listed
