The Eaton EHD2010L is an EHD frame molded case circuit breaker engineered to provide reliable overcurrent protection for commercial and industrial electrical systems. Featuring a thermal magnetic non-interchangeable trip unit, this breaker delivers dependable protection against overload and short-circuit conditions. With a current rating of 10 amperes at 40°C and a 2-pole configuration, the breaker is designed for 480VAC applications at 50/60Hz. Its robust interrupting capacity ensures effective fault protection, while standard line and load end terminals provide secure connections and straightforward installation.
Product Specification:
- Manufacturer: Eaton / Cutler Hammer
- Warranty: One Year
- Connection: Bolt On
- Frame Type: F
- Amperage: 10A
- Poles: 2
- Standard Lug Type: Line and Load
Technical Specification:
- Thermal Magnetic Non-interchangeable Trip Unit
- EHD Frame Molded Case Circuit Breaker design
- 2-Pole configuration for dual circuit protection
- Bolt-on mounting for secure panel installation
Voltage and Ratings:
- Rated Voltage: 480VAC @ 50/60Hz
- Maximum Voltage: 480V
- Interrupting Capacity:
-
- 18 kA @ 240VAC
- 14 kA @ 480VAC
- 10 kA @ 250VDC
Product Data:
- Model Number: EHD2010L
- Breaker Type: Molded Case Circuit Breaker
- Frame Style: EHD
- Operating Temperature Rating: 40°C
- Terminals: Standard Line and Load End Terminals
Important Note:

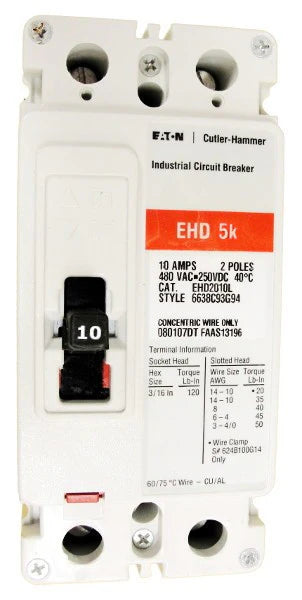

This product image represents a base model and is intended for identification purposes only. If you are purchasing accessories together with your breaker, include the necessary configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
