The Eaton EHD2035L is an EHD frame molded case circuit breaker designed to provide reliable overcurrent protection for commercial and industrial electrical distribution systems. It features a thermal magnetic non-interchangeable trip unit that ensures dependable protection against overloads and short circuits. With a 35-ampere rating at 40°C and a 2-pole configuration, this breaker is built for 480VAC applications at 50/60Hz. Its durable construction and strong interrupting capacity help maintain system safety during fault conditions, while standard line and load end terminals support secure wiring and straightforward installation.
Product Specification:
- Manufacturer: Eaton / Cutler Hammer
- Warranty: One Year
- Connection: Bolt On
- Frame Type: F
- Amperage: 35A
- Poles: 2
- Standard Lug Type: Line and Load
Technical Specification:
- Thermal Magnetic Non-interchangeable Trip Unit
- EHD Frame Molded Case Circuit Breaker construction
- 2-Pole configuration for dual circuit protection
- Bolt-on mounting for secure panelboard installation
Voltage and Ratings:
- Rated Voltage: 480VAC @ 50/60Hz
- Maximum Voltage: 480V
- Interrupting Capacity:
-
- 18 kA @ 240VAC
- 14 kA @ 480VAC
- 10 kA @ 250VDC
Product Data:
- Model Number: EHD2035L
- Breaker Type: Molded Case Circuit Breaker
- Frame Style: EHD
- Operating Temperature Rating: 40°C
- Terminals: Standard Line and Load End Terminals
Important Note:

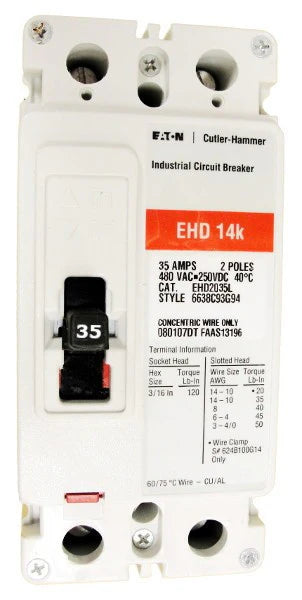

This product image represents a base model and is intended for identification purposes only. If you are purchasing accessories together with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
