Eaton EHD2080L 80A 2P Molded Case Circuit Breaker – Bolt On – 480VAC

The Eaton EHD2080L is an EHD frame molded case circuit breaker designed to deliver reliable overcurrent protection in commercial and industrial electrical systems. It features a thermal magnetic non-interchangeable trip unit that ensures consistent protection against overloads and short circuits. With an 80-ampere rating at 40°C and a 2-pole configuration, this breaker is suitable for 480VAC applications at 50/60Hz. Its robust interrupting capacity and standard line and load end terminals provide secure connections and facilitate straightforward installation in panelboards and distribution systems.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 80A
• Poles: 2
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• EHD Frame Molded Case Circuit Breaker design
• 2-Pole configuration for dual circuit protection
• Bolt-on mounting for secure panel installation

Voltage and Ratings:

• Rated Voltage: 480VAC @ 50/60Hz
• Maximum Voltage: 480V
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: EHD2080L
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: EHD
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

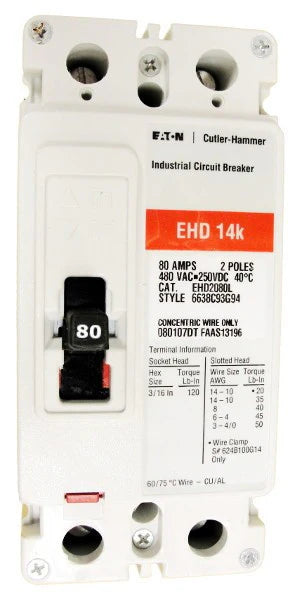

This product image represents a base model and is provided for identification purposes only. If you are purchasing accessories along with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
