Eaton EHD2090L 90A 2P Molded Case Circuit Breaker – Bolt On – 480VAC

The Eaton EHD2090L is an EHD frame molded case circuit breaker designed to provide reliable protection against overcurrent conditions in commercial and industrial electrical systems. It features a thermal magnetic non-interchangeable trip unit that ensures consistent response to overloads and short circuits. Rated at 90 amperes at 40°C with a 2-pole configuration, this breaker is suitable for 480VAC applications at 50/60Hz. Its robust interrupting capacity, along with standard line and load end terminals, allows for secure connections and efficient installation in distribution panels.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 90A
• Poles: 2
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• EHD Frame Molded Case Circuit Breaker
• 2-Pole configuration for dual circuit protection
• Bolt-on mounting design for secure installation

Voltage and Ratings:

• Rated Voltage: 480VAC @ 50/60Hz
• Maximum Voltage: 480V
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: EHD2090L
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: EHD
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

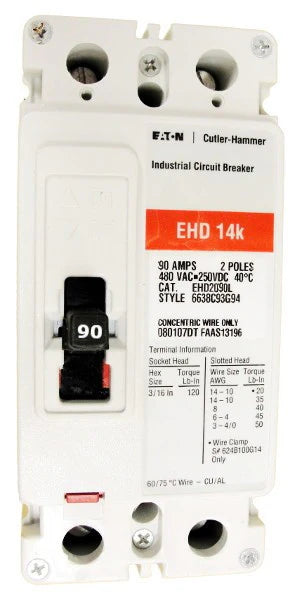

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories together with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
