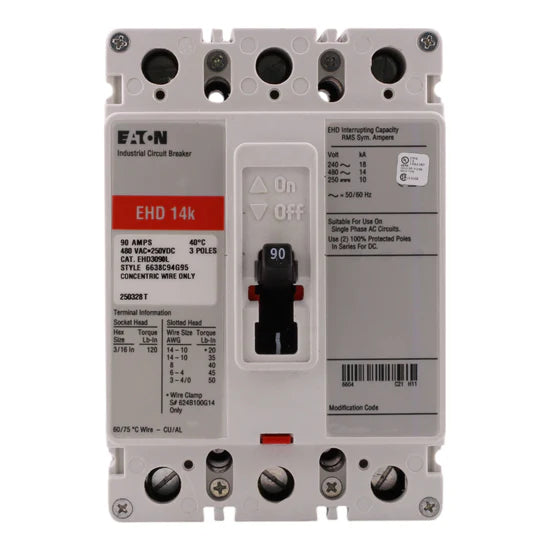

The Eaton EHD3090L is a 90 Amp three-pole molded case circuit breaker engineered for reliable overcurrent protection in commercial and industrial distribution systems. Part of Eaton’s Series C F-frame lineup, it features a fixed thermal and fixed magnetic trip (T186) for consistent performance and dependable fault interruption. Its robust interrupting capacity and line/load terminals make it suitable for demanding electrical applications.
Voltage and Rating:
- Current Rating: 90 Amps
- Voltage Rating: 240/480 Volts AC
- Frequency: 50/60 Hz
Key Features:
- Breaker Type: Molded Case Circuit Breaker
- Trip Type: Fixed Thermal, Fixed Magnetic (T186)
- Frame Type: F-Frame
- Poles: 3-Pole
- Interrupt Rating:
- 18 kAIC at 240 VAC
- 14 kAIC at 480 VAC
- Terminals: Line and Load
Physical Specifications:
-
- Height: 6 in
- Width: 4.13 in
- Depth: 3.38 in
- Weight: 4.5 lbs
Product Data
Manufacturer: Eaton
Brand: Eaton
Series: Series C (F-frame)
Model Number: EHD3090L
UPC: 786679399729
Certifications: UL Listed
- Type Circuit Breakers
- Vendor Eaton
- Brand Eaton
