Eaton EHD3100K 100A 3P High Magnetic Molded Case Switch – Bolt On – 480VAC

The Eaton EHD3100K is an EHD frame high magnetic molded case switch designed for reliable circuit protection in commercial and industrial applications. Rated at 100 amperes at 40°C with a 3-pole configuration, it operates efficiently on 480VAC systems at 50/60Hz. This switch provides robust interrupting capacity to protect electrical circuits from overloads and short circuits. Standard load end terminals ensure secure connections, and its bolt-on mounting allows for straightforward and stable installation.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 100A
• Poles: 3
• Standard Lug Type: Load End Only

Technical Specification:

• High Magnetic Molded Case Switch
• EHD Frame construction
• 3-Pole configuration for three-phase circuit protection
• Bolt-on mounting design for secure panel installation

Voltage and Ratings:

• Rated Voltage: 480VAC @ 50/60Hz
• Maximum Voltage: 480V
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: EHD3100K
• Breaker Type: High Magnetic Molded Case Switch
• Frame Style: EHD
• Operating Temperature Rating: 40°C
• Terminals: Load End Only

Important Note:

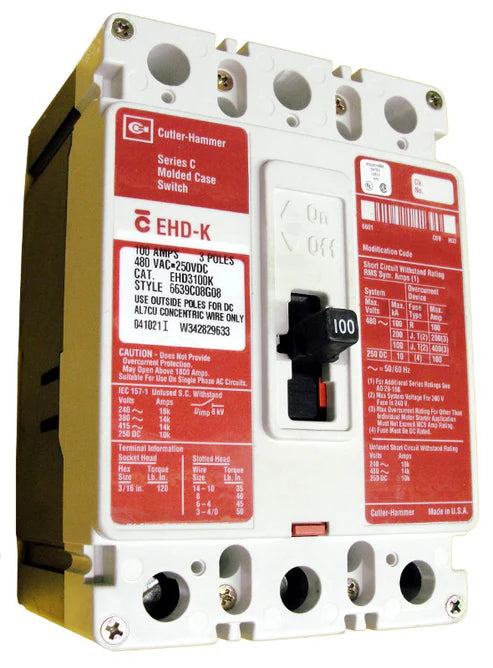

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories together with your switch, include the necessary configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
