The Eaton FDE316033L Series Molded Case Circuit Breaker is a robust and reliable solution designed for commercial and industrial power distribution systems. Featuring an electronic non-interchangeable trip unit with LS (Long-Time and Short-Time) protection functions, this breaker ensures precise overload and short circuit protection. With a 160 ampere rating and bolt-on mounting configuration, it provides secure installation and dependable performance in demanding electrical environments.
Product Specifications
- Frame Style: F
- Breaker Type: Molded Case Circuit Breaker
- Trip Unit Type: Electronic Non-Interchangeable (LS)
- Amperage Rating: 160 Ampere
- Number of Poles: 3 Pole
- Frequency: 50/60 Hz
- Mounting Type: Bolt-On
- Operating Temperature: 40°C
- Application: Commercial and Industrial Power Distribution
Technical Specifications
- Trip Function: LS (Long-Time and Short-Time Protection)
- Interrupting Capacity Type: Standard Interrupting Capacity
- Construction Type: Molded Case
- Protection Features: Overload and Short Circuit Protection
- Line & Load Terminals: Standard Lugs Included
Voltage and Ratings
- Maximum Voltage: 600 VAC
- Frequency Rating: 50/60 Hz
- Interrupting Rating @ 240VAC: 65 kA
- Interrupting Rating @ 480VAC: 35 kA
- Interrupting Rating @ 600VAC: 18 kA
Product Data
- Manufacturer: Eaton / Cutler Hammer
- Condition: New / Unused
- Connection Type: Bolt-On
- Warranty: 1 Year
- Series / Frame Family: FD Series (F Frame)
- Standard Lug Type: Line and Load
Important Note

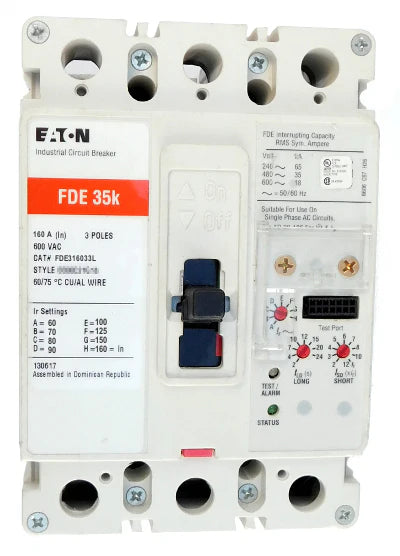

The product image shown is for identification purposes only and may not represent the exact configuration. Accessories can be installed at no additional cost when ordered together—please specify requirements during checkout. Always verify compatibility and technical specifications with official Eaton documentation before installation.
