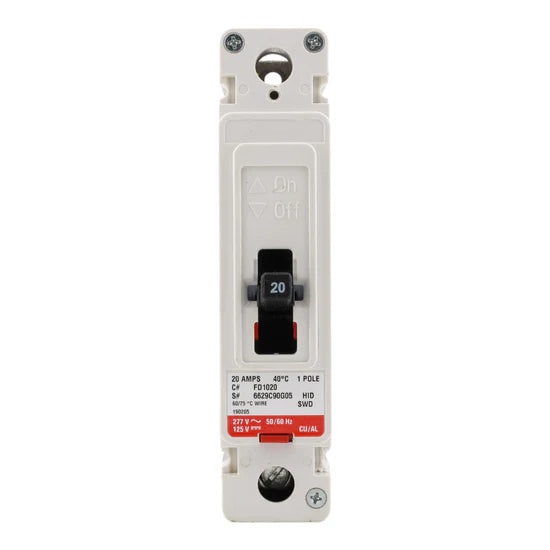

The Eaton FD1020 20 Amp single-pole F-frame molded case circuit breaker provides reliable protection for high-voltage AC and DC applications. With a fixed thermal-magnetic trip, this breaker safeguards electrical systems against overloads and short circuits. UL listed and designed for demanding commercial and industrial environments, the FD1020 ensures durability and dependable performance, making it suitable for electricians, contractors, and facility managers requiring robust protection in 347VAC/125VDC circuits.
Voltage and Rating
- Current Rating: 20 Amps
- Voltage Rating: 347VAC / 125VDC
- Interrupting Capacity: 35 kAIC @ 277VAC, 18 kAIC @ 347VAC
- Frequency Rating: 50/60 Hz
Key Specifications
- Breaker Type: FD Series C Molded Case Circuit Breaker
- Number of Poles: 1-Pole
- Frame Type: F-Frame
- Trip Type: Fixed thermal, Fixed magnetic
- Breaker Configuration: Complete breaker
- Terminal Location: Load side
- Protection Type: Overload and Short-Circuit Protection
Technical Specifications
- Operating Mechanism: Thermal-magnetic
- Certifications: UL Listed
Product Data
- Manufacturer: Eaton
- Brand: Series C
- Model Number: FD1020
- UPC: 786679312117
-
Dimensions:
- Height: 6 in
- Width: 1.38 in
- Depth: 3.38 in
- Weight: 1.6 lb
