Eaton FD1020L 20A 1P Molded Case Circuit Breaker – Bolt On – 600VAC

The Eaton FD1020L is an FD frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical systems. Equipped with a thermal magnetic non-interchangeable trip unit, it provides consistent protection against overloads and short circuits. Rated at 20 amperes at 40°C with a single-pole configuration, this breaker is suitable for 600VAC applications at 50/60Hz. Its high interrupting capacity and standard line and load end terminals ensure secure connections and reliable operation in panelboards and distribution systems.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 20A
• Poles: 1
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• FD Frame Molded Case Circuit Breaker construction
• Single-Pole configuration for single-phase protection
• Bolt-on mounting for secure panel installation

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Maximum Voltage: 600V
• Interrupting Capacity:
• • 65 kA @ 240VAC
  • 25 kA @ 480VAC
  • 18 kA @ 600VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: FD1020L
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: FD
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

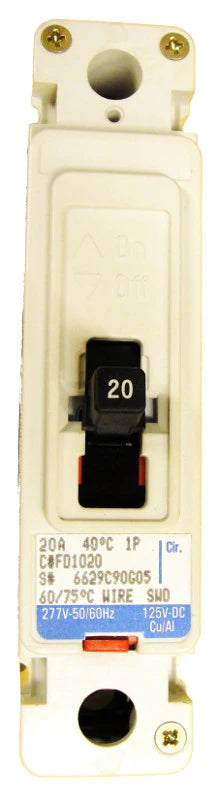

This product image represents a base model and is for identification purposes only. If you are purchasing accessories along with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
