Eaton FD2040L 40A 2P Molded Case Circuit Breaker – Bolt On – 600VAC

The Eaton FD2040L is an FD frame molded case circuit breaker engineered for dependable overcurrent protection in commercial and industrial electrical systems. It features a thermal magnetic non-interchangeable trip unit that delivers reliable protection against overloads and short circuits. Rated at 40 amperes at 40°C with a 2-pole configuration, this breaker is designed for 600VAC applications at 50/60Hz. Its high interrupting capacity, combined with standard line and load end terminals, ensures secure connections and reliable performance in distribution panels and electrical equipment.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 40A
• Poles: 2
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• FD Frame Molded Case Circuit Breaker construction
• 2-Pole configuration for dual circuit protection
• Bolt-on mounting for secure panel installation

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Maximum Voltage: 600V
• Interrupting Capacity:
• • 65 kA @ 240VAC
  • 35 kA @ 480VAC
  • 18 kA @ 600VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: FD2040L
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: FD
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

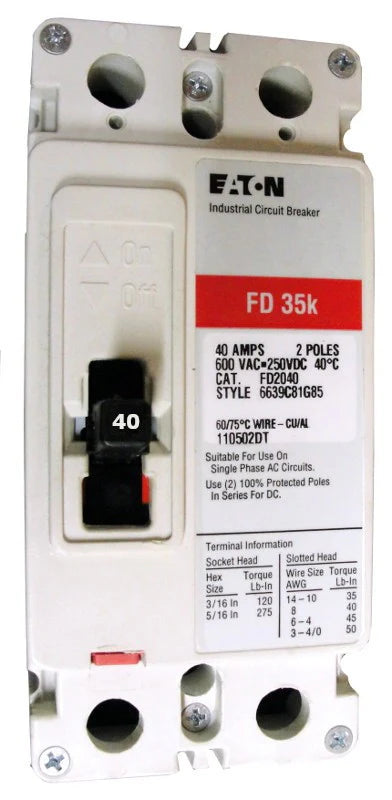

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories along with your breaker, provide the necessary configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
