The Eaton FD2060L is an FD frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical systems. It features a thermal magnetic non-interchangeable trip unit, providing dependable protection against overloads and short circuits. Rated at 60 amperes at 40°C with a 2-pole configuration, this breaker is suitable for 600VAC applications at 50/60Hz. Its high interrupting capacity and standard line and load end terminals ensure secure connections and efficient installation in panelboards and distribution equipment.
Product Specification:
- Manufacturer: Eaton / Cutler Hammer
- Warranty: One Year
- Connection: Bolt On
- Frame Type: F
- Amperage: 60A
- Poles: 2
- Standard Lug Type: Line and Load
Technical Specification:
- Thermal Magnetic Non-interchangeable Trip Unit
- FD Frame Molded Case Circuit Breaker construction
- 2-Pole configuration for dual circuit protection
- Bolt-on mounting for secure installation
Voltage and Ratings:
- Rated Voltage: 600VAC @ 50/60Hz
- Maximum Voltage: 600V
- Interrupting Capacity:
- 65 kA @ 240VAC
- 35 kA @ 480VAC
- 18 kA @ 600VAC
- 10 kA @ 250VDC
Product Data:
- Model Number: FD2060L
- Breaker Type: Molded Case Circuit Breaker
- Frame Style: FD
- Operating Temperature Rating: 40°C
- Terminals: Standard Line and Load End Terminals

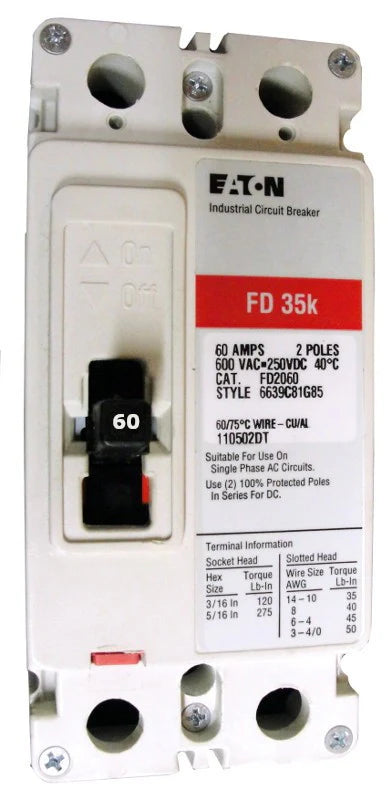

Important Note:
This product image represents a base model and is for identification purposes only. If you are purchasing accessories along with your breaker, include the necessary configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
