Eaton FD2070L 70A 2P Molded Case Circuit Breaker – Bolt On – 600VAC

The Eaton FD2070L is an FD frame molded case circuit breaker engineered to provide reliable overcurrent protection in commercial and industrial electrical systems. It features a thermal magnetic non-interchangeable trip unit that ensures consistent protection against overloads and short circuits. Rated at 70 amperes at 40°C with a 2-pole configuration, this breaker is suitable for 600VAC applications at 50/60Hz. Its high interrupting capacity, combined with standard line and load end terminals, allows for secure connections and straightforward installation in panelboards and electrical distribution equipment.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 70A
• Poles: 2
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• FD Frame Molded Case Circuit Breaker construction
• 2-Pole configuration for dual circuit protection
• Bolt-on mounting for secure installation

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Maximum Voltage: 600V
• Interrupting Capacity:
  • 65 kA @ 240VAC
  • 35 kA @ 480VAC
  • 18 kA @ 600VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: FD2070L
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: FD
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

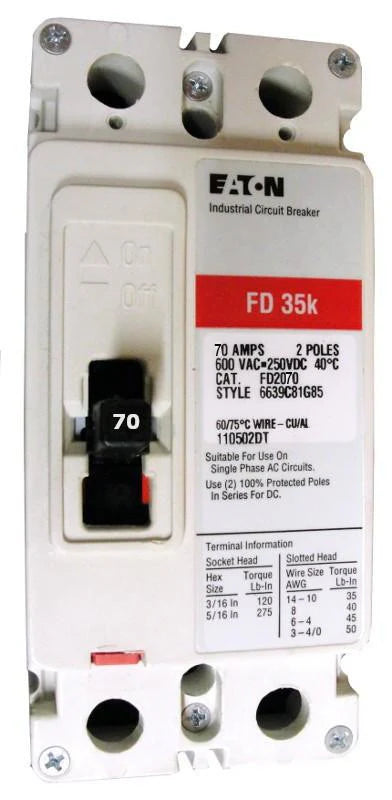

This product image represents a base model and is for identification purposes only. If you are purchasing accessories together with your breaker, include the necessary configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
