The Eaton FD2175L is an FD frame molded case circuit breaker engineered to provide reliable overcurrent protection in commercial and industrial electrical distribution systems. It features a thermal magnetic non-interchangeable trip unit that ensures dependable response to overloads and short-circuit faults. With a 175-ampere rating at 40°C and a 2-pole configuration, this breaker is designed for 600VAC applications at 50/60Hz. Its high interrupting capacity enhances system safety, while standard line and load end terminals provide secure connections and straightforward installation in panelboards and electrical equipment.
Product Specification:
- Manufacturer: Eaton / Cutler Hammer
- Warranty: One Year
- Connection: Bolt On
- Frame Type: F
- Amperage: 175A
- Poles: 2
- Standard Lug Type: Line and Load
Technical Specification:
- Thermal Magnetic Non-interchangeable Trip Unit
- FD Frame Molded Case Circuit Breaker construction
- 2-Pole configuration for dual circuit protection
- Bolt-on mounting for secure installation in distribution panels
Voltage and Ratings:
- Rated Voltage: 600VAC @ 50/60Hz
- Maximum Voltage: 600V
- Interrupting Capacity:
-
- 65 kA @ 240VAC
- 35 kA @ 480VAC
- 18 kA @ 600VAC
- 10 kA @ 250VDC
Product Data:
- Model Number: FD2175L
- Breaker Type: Molded Case Circuit Breaker
- Frame Style: FD
- Operating Temperature Rating: 40°C
- Terminals: Standard Line and Load End Terminals
Important Note:

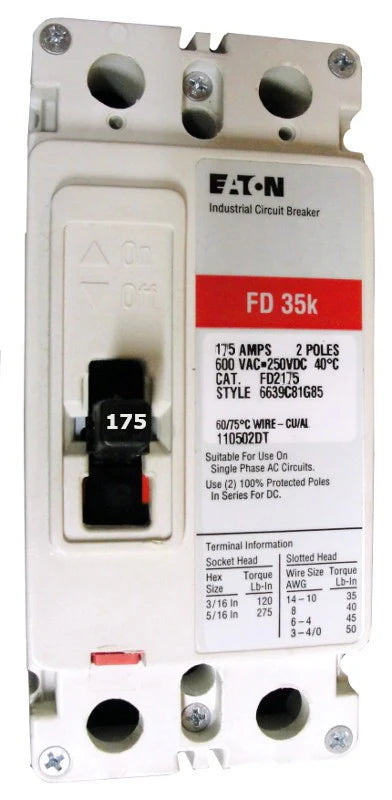

This product image represents a base model and is intended for identification purposes only. If you are purchasing accessories together with your breaker, include the necessary configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
