Eaton FD3150LS06 150A 3P Molded Case Circuit Breaker – Bolt On – 600VAC

The Eaton FD3150LS06 is an FD frame molded case circuit breaker designed for dependable overcurrent protection in commercial and industrial electrical distribution systems. It features a thermal magnetic non-interchangeable trip unit that ensures reliable protection against overloads and short-circuit conditions. Rated at 150 amperes at 40°C with a 3-pole configuration, this breaker is suitable for 600VAC applications at 50/60Hz. The S06 option includes a factory-installed shunt trip for remote tripping capability, mounted on the left pole and exiting from the rear, providing additional operational control for advanced electrical system management. Standard line and load end terminals support secure connections and efficient installation.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Configuration: S06 Option Includes [48–127 VAC or 48–60 VDC Shunt Trip Installed, Left Pole Mounted, Exiting Rear]
• Connection: Bolt On
• Frame Type: F
• Amperage: 150A
• Poles: 3
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• FD Frame Molded Case Circuit Breaker construction
• 3-Pole configuration for three-phase circuit protection
• Factory-installed shunt trip (S06 option) for remote tripping capability
• Bolt-on mounting for secure panel installation

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Maximum Voltage: 600V
• Interrupting Capacity:
• • 65 kA @ 240VAC
  • 35 kA @ 480VAC
  • 18 kA @ 600VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: FD3150LS06
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: FD
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals
• Special Feature: S06 Shunt Trip Option Installed

Important Note:

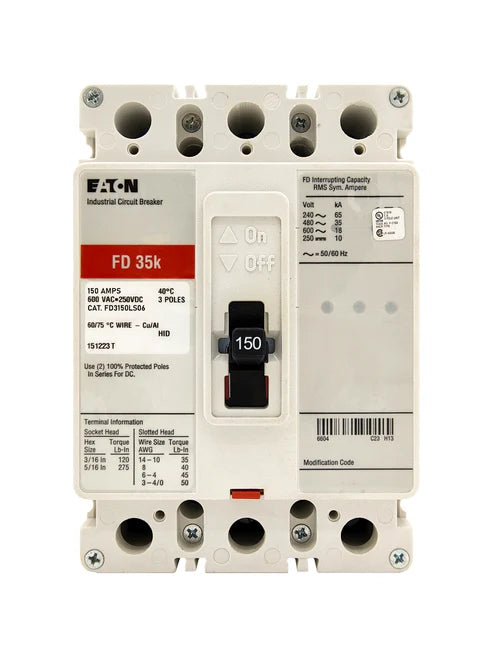

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories together with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
