Eaton FDB2015L 15A 2P Molded Case Circuit Breaker – Bolt On – 600VAC

The Eaton FDB2015L is an FDB frame molded case circuit breaker designed to deliver dependable overcurrent protection for commercial and industrial electrical systems. Equipped with a thermal magnetic non-interchangeable trip unit, it provides reliable protection against both overload and short-circuit conditions. This breaker is rated at 15 amperes at 40°C and features a 2-pole configuration suitable for branch circuit protection in 600VAC applications operating at 50/60Hz. The bolt-on mounting design ensures secure installation in panelboards, while standard line and load end terminals provide stable electrical connections and simplified wiring.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 15A
• Poles: 2
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• FDB Frame Molded Case Circuit Breaker construction
• 2-Pole configuration for branch circuit protection
• Provides overload and short-circuit protection
• Bolt-on mounting for secure panelboard installation

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Maximum Voltage: 600V
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 14 kA @ 600VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: FDB2015L
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: FDB
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

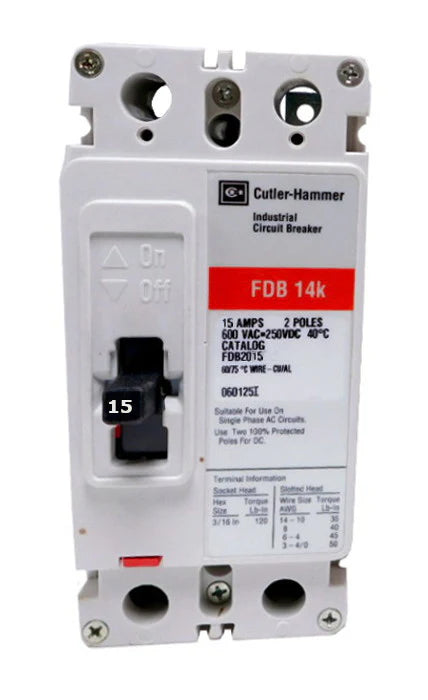

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
