The Eaton FDB2020L is an FDB frame molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial electrical systems. Featuring a thermal magnetic non-interchangeable trip unit, it ensures effective protection against overloads and short circuits. Rated at 20 amperes at 40°C with a 2-pole configuration, this breaker is suitable for branch circuit protection in systems operating up to 600VAC at 50/60Hz. Its bolt-on mounting design allows for secure installation, while standard line and load end terminals ensure dependable electrical connections and ease of installation.
Product Specification:
- Manufacturer: Eaton / Cutler Hammer
- Warranty: One Year
- Connection: Bolt On
- Frame Type: F
- Amperage: 20A
- Poles: 2
- Standard Lug Type: Line and Load
Technical Specification:
- Thermal Magnetic Non-interchangeable Trip Unit
- FDB Frame Molded Case Circuit Breaker construction
- 2-Pole configuration for branch circuit protection
- Provides overload and short-circuit protection
- Bolt-on mounting for secure panelboard installation
Voltage and Ratings:
- Rated Voltage: 600VAC @ 50/60Hz
- Maximum Voltage: 600V
- Interrupting Capacity:
-
- 18 kA @ 240VAC
- 14 kA @ 480VAC
- 14 kA @ 600VAC
- 10 kA @ 250VDC
Product Data:
- Model Number: FDB2020L
- Breaker Type: Molded Case Circuit Breaker
- Frame Style: FDB
- Operating Temperature Rating: 40°C
- Terminals: Standard Line and Load End Terminals
Important Note:

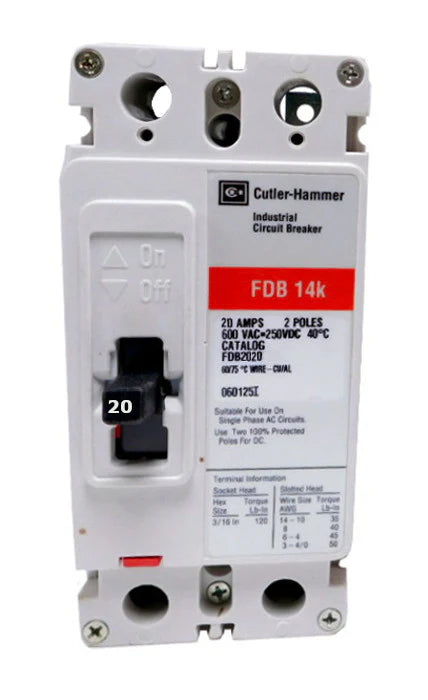

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
