Eaton FDB2030L 30A 2P Molded Case Circuit Breaker – Bolt On – 600VAC

The Eaton FDB2030L is an FDB frame molded case circuit breaker engineered to provide consistent and reliable overcurrent protection in commercial and industrial electrical systems. It features a thermal magnetic non-interchangeable trip unit that delivers effective protection against both overload and short-circuit conditions. Rated at 30 amperes at 40°C with a 2-pole configuration, this breaker is well-suited for branch circuit protection in systems operating up to 600VAC at 50/60Hz. The bolt-on mounting design ensures secure installation, while standard line and load end terminals support efficient wiring and dependable performance.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 30A
• Poles: 2
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• FDB Frame Molded Case Circuit Breaker construction
• 2-Pole configuration for branch circuit applications
• Provides overload and short-circuit protection
• Bolt-on mounting for secure and stable installation

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Maximum Voltage: 600V
• Interrupting Capacity:
  • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 14 kA @ 600VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: FDB2030L
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: FDB
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

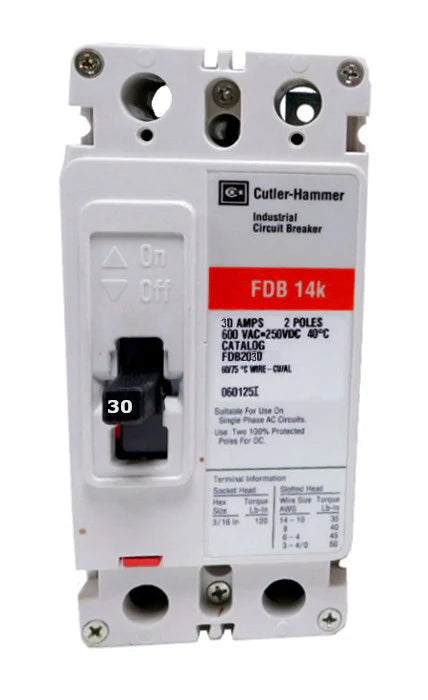

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories with your breaker, include the necessary configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
