Eaton FDB2110L 110A 2P Molded Case Circuit Breaker – Bolt On – 600VAC

The Eaton FDB2110L is an FDB frame molded case circuit breaker engineered to provide dependable overcurrent protection in commercial and industrial electrical systems. It features a thermal magnetic non-interchangeable trip unit, ensuring precise protection against overload and short-circuit conditions. Rated at 110 amperes at 40°C with a 2-pole configuration, this breaker is ideal for branch circuit applications operating up to 600VAC at 50/60Hz. Its bolt-on mounting design allows for secure installation, while standard line and load end terminals ensure reliable and efficient electrical connectivity.

Product Specification:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Connection: Bolt On
• Frame Type: F
• Amperage: 110A
• Poles: 2
• Standard Lug Type: Line and Load

Technical Specification:

• Thermal Magnetic Non-interchangeable Trip Unit
• FDB Frame Molded Case Circuit Breaker construction
• 2-Pole configuration for branch circuit protection
• Provides overload and short-circuit protection
• Bolt-on mounting for secure installation

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Maximum Voltage: 600V
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 14 kA @ 600VAC
  • 10 kA @ 250VDC

Product Data:

• Model Number: FDB2110L
• Breaker Type: Molded Case Circuit Breaker
• Frame Style: FDB
• Operating Temperature Rating: 40°C
• Terminals: Standard Line and Load End Terminals

Important Note:

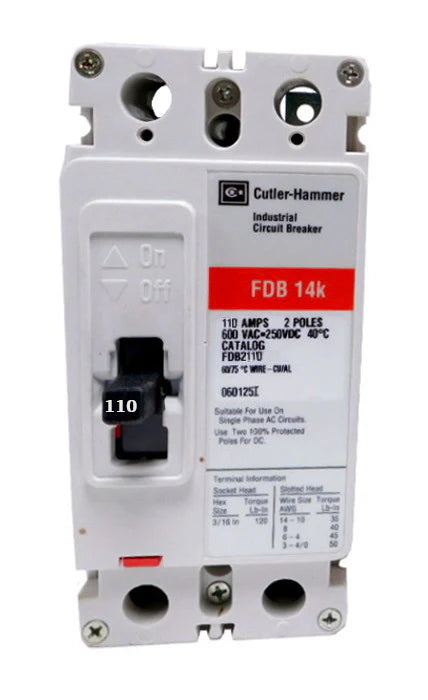

This product image represents a base model and is intended for identification purposes only. If you are ordering accessories with your breaker, include the required configuration details in the order comment box during checkout. Accessories will be installed according to your specifications at no additional cost.
