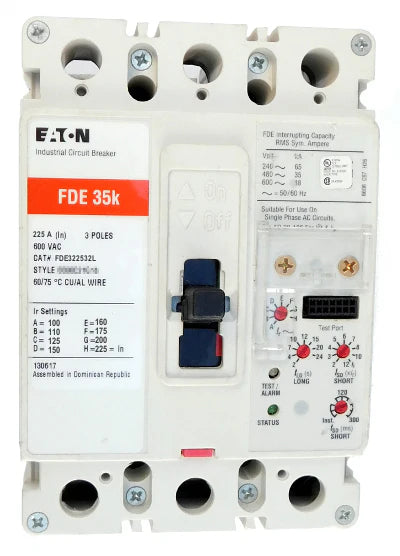

Eaton FDE322532L 225A 3 Pole Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton FD Series Molded Case Circuit Breaker is engineered for high-performance protection in commercial and industrial electrical systems. Equipped with an electronic non-interchangeable trip unit featuring LSI (Long-Time, Short-Time, and Instantaneous) protection, this breaker delivers enhanced fault detection and system reliability. With a 225 ampere rating and bolt-on mounting design, it ensures secure installation and consistent operation under demanding load conditions.

Product Specifications

• Frame Style: F
• Breaker Type: Molded Case Circuit Breaker
• Trip Unit Type: Electronic Non-Interchangeable (LSI)
• Amperage Rating: 225 Ampere
• Number of Poles: 3 Pole
• Frequency: 50/60 Hz
• Mounting Type: Bolt-On
• Operating Temperature: 40°C
• Application: Commercial and Industrial Power Distribution

Technical Specifications

• Trip Function: LSI (Long-Time, Short-Time, Instantaneous Protection)
• Interrupting Capacity Type: Standard Interrupting Capacity
• Construction Type: Molded Case
• Protection Features: Overload, Short Circuit, and Instantaneous Fault Protection
• Line & Load Terminals: Standard Lugs Included

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Frequency Rating: 50/60 Hz
• Interrupting Rating @ 240VAC: 65 kA
• Interrupting Rating @ 480VAC: 35 kA
• Interrupting Rating @ 600VAC: 18 kA

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Condition: New / Unused
• Connection Type: Bolt-On
• Warranty: 1 Year
• Series / Frame Family: FD Series (F Frame)
• Standard Lug Type: Line and Load

Important Note

The product image is for identification purposes only and may not reflect the exact configuration. Accessories ordered with the breaker can be factory-installed at no additional cost—please include specifications in the order notes. Always confirm compatibility and technical details with official Eaton documentation before installation.
