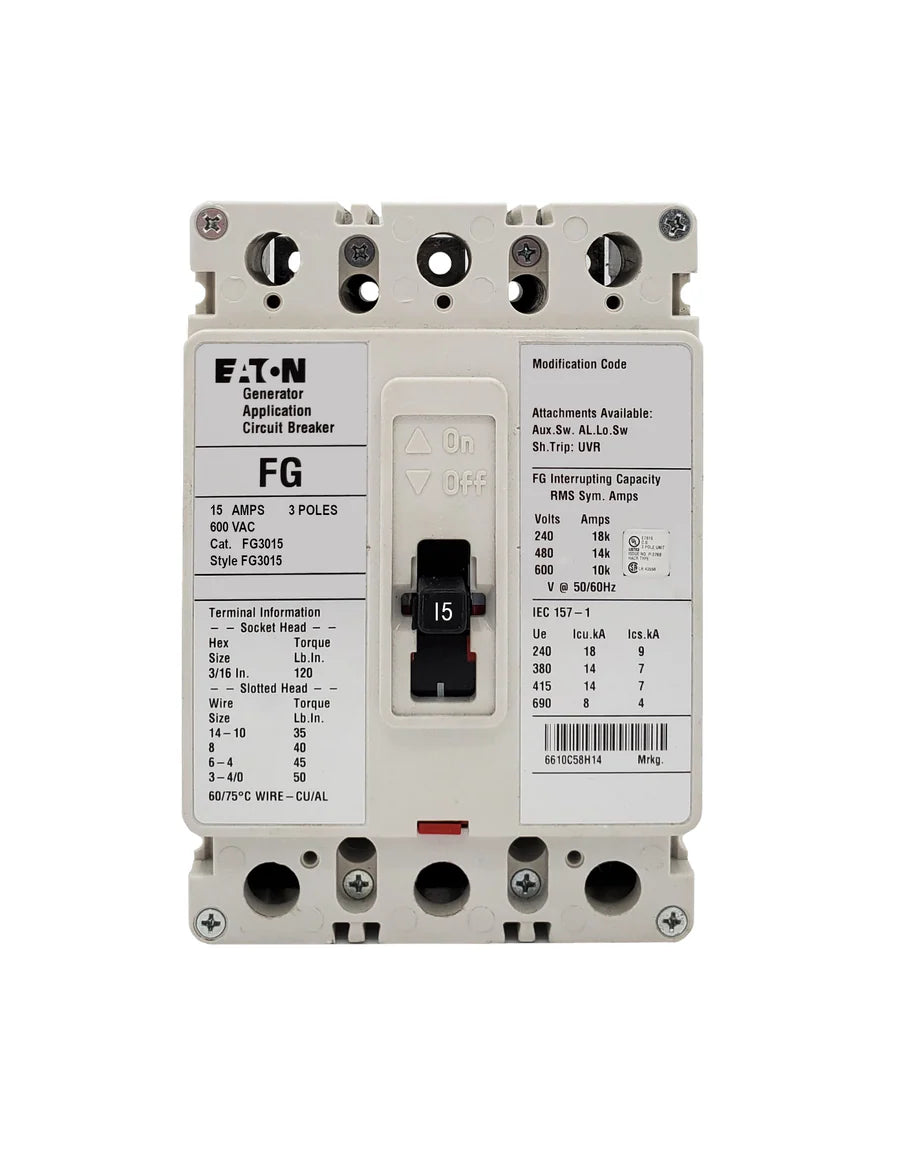

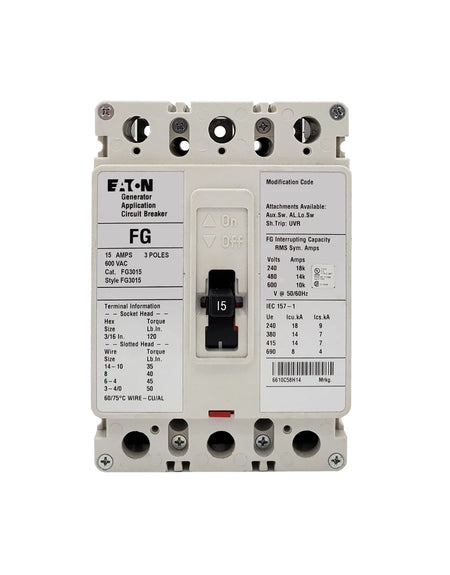

The Eaton Cutler-Hammer FG3015 is an EG-frame, 15A, three-pole thermal-magnetic molded case circuit breaker designed for commercial and industrial power distribution applications. It features a non-interchangeable trip unit providing thermal overload and magnetic short-circuit protection. Its bolt-on mounting configuration supports secure installation, with a maximum voltage rating of 600V AC.
Specifications
- Brand: Eaton / Cutler-Hammer
- Model: FG3015
- Frame: EG
- Breaker Type: Molded Case Circuit Breaker (MCCB)
- Current Rating: 15A
- Poles: 3
- Voltage Rating: 600V AC
- Interrupting Capacity @ 240V AC: 18 kA
- Interrupting Capacity @ 480V AC: 14 kA
- Interrupting Capacity @ 600V AC: 10 kA
- Interrupting Class: Standard interrupting capacity
- Trip Unit: Thermal-magnetic, non-interchangeable
- Trip Function: Thermal overload and magnetic short-circuit protection
- Mounting Type: Bolt-on
- Terminal Type: Standard line- and load-side lugs
- Frequency: 50/60 Hz
- Operating Temperature: 40°C
- Construction: Molded case
Part Numbers & Identification
- Catalog Number: FG3015
- Manufacturer: Eaton / Cutler-Hammer
- Product Family: EG Frame Series
- Product Type: Three-pole molded case circuit breaker
- Connection Type: Bolt-on
- UPC:786679269503
Compatibility
Suitable for Eaton EG-frame applications requiring a 15A, three-pole, bolt-on molded case circuit breaker with non-interchangeable thermal-magnetic protection for commercial and light industrial power distribution.
