Eaton FG3060 60A 3 Pole Molded Case Circuit Breaker – Bolt-On – 600VAC

Eaton FG3060 60A 3 Pole Molded Case Circuit Breaker – Bolt-On – 600VACa

The Eaton FG3060 Molded Case Circuit Breaker, part of the EG frame series, is designed for reliable protection in commercial and industrial power distribution systems. This 3-pole breaker features a thermal magnetic non-interchangeable trip unit, delivering dependable overload and short-circuit protection. Its bolt-on design and standard line/load terminals allow for secure and efficient installation.

Product Specifications

• Frame Style: EG
• Breaker Type: Molded Case Circuit Breaker
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Amperage Rating: 60 Ampere
• Number of Poles: 3 Pole
• Maximum Voltage: 600 VAC
• Frequency: 50/60 Hz
• Mounting Type: Bolt-On
• Operating Temperature: 40°C

Technical Ratings

• Interrupting Rating @ 240VAC: 18 kA
• Interrupting Rating @ 480VAC: 14 kA
• Interrupting Rating @ 600VAC: 10 kA
• Line & Load Terminals: Standard Lugs Included

Manufacturer Information

• Manufacturer: Eaton / Cutler Hammer
• Series / Frame Family: EG Frame Series
• Warranty: 1 Year

Notes

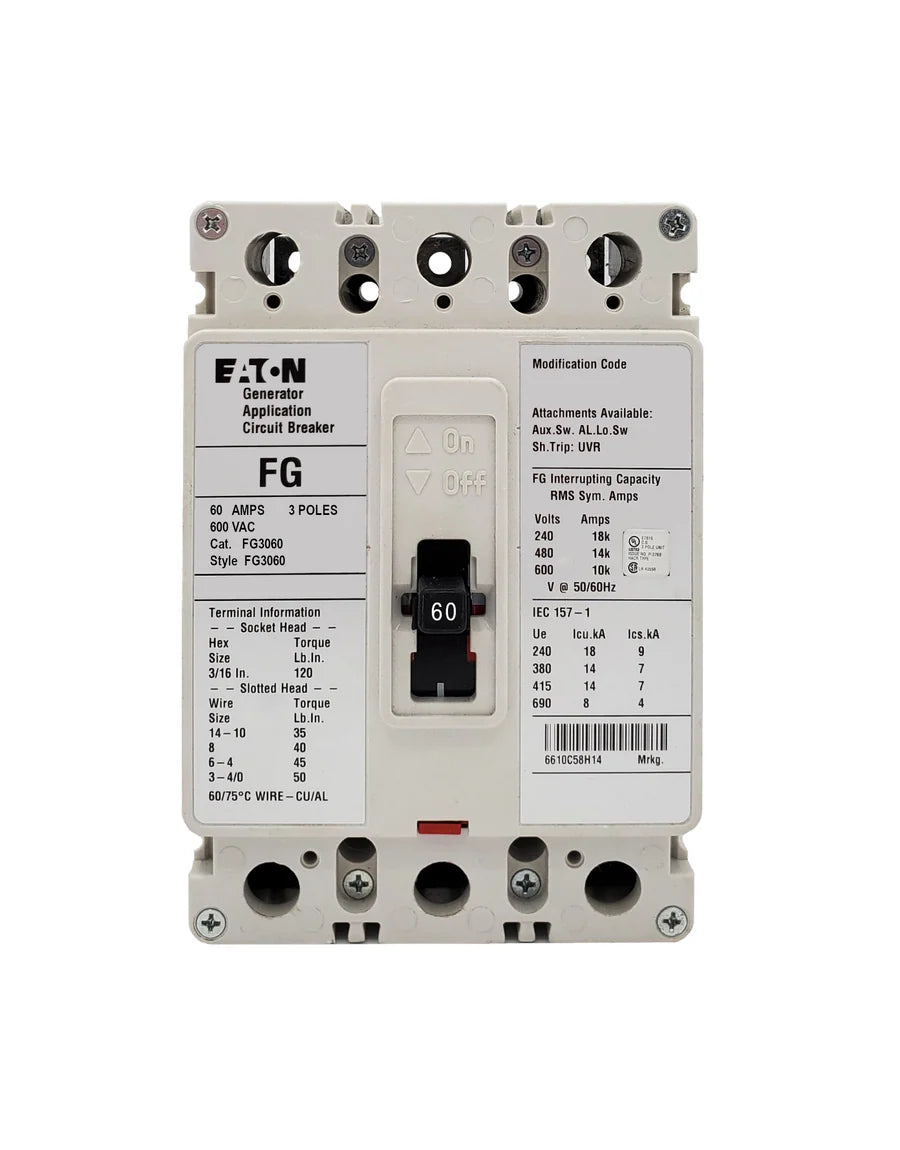

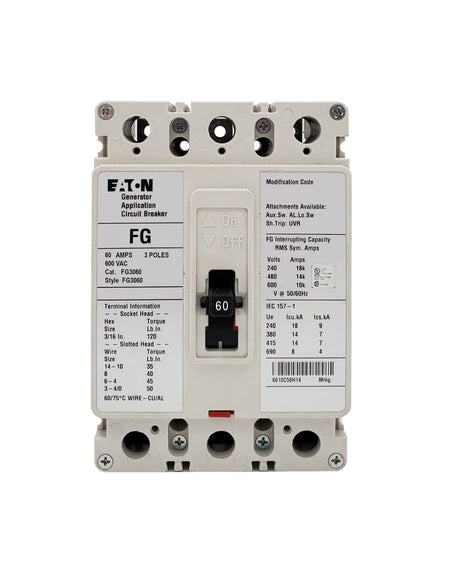

This product image represents a base model and is for identification purposes only. Accessories can be installed at no additional cost if ordered together—please specify requirements in the order comments. Always verify compatibility and technical specifications with official Eaton documentation prior to installation.
