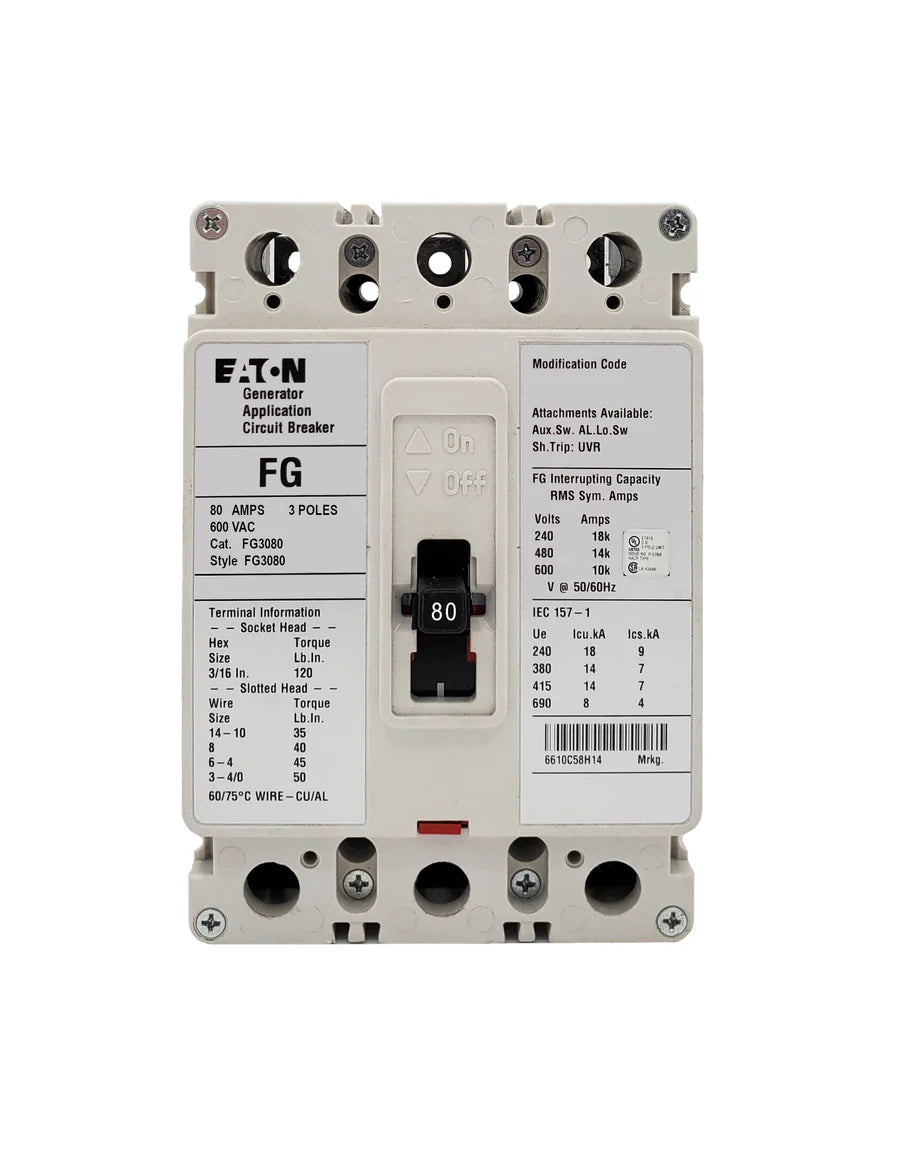

Eaton FG3080 80A 3 Pole Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton FG3080 Molded Case Circuit Breaker from the EG frame series is designed to provide dependable circuit protection in commercial and industrial power distribution systems. Featuring a thermal magnetic non-interchangeable trip unit, this breaker ensures reliable protection against overloads and short circuits. Its 80 ampere rating and bolt-on mounting configuration offer secure installation and consistent performance in demanding environments.

Product Specifications

• Frame Style: EG
• Breaker Type: Molded Case Circuit Breaker
• Trip Unit Type: Thermal Magnetic Non-Interchangeable
• Amperage Rating: 80 Ampere
• Number of Poles: 3 Pole
• Frequency: 50/60 Hz
• Mounting Type: Bolt-On
• Operating Temperature: 40°C
• Application: Commercial and Industrial Power Distribution

Technical Specifications

• Trip Function: Thermal Magnetic (Overload and Short Circuit Protection)
• Interrupting Capacity Type: Standard Interrupting Capacity
• Construction Type: Molded Case
• Protection Features: Thermal Overload and Magnetic Short Circuit Protection
• Line & Load Terminals: Standard Lugs Included

Voltage and Ratings

• Maximum Voltage: 600 VAC
• Frequency Rating: 50/60 Hz
• Interrupting Rating @ 240VAC: 18 kA
• Interrupting Rating @ 480VAC: 14 kA
• Interrupting Rating @ 600VAC: 10 kA

Product Data

• Manufacturer: Eaton / Cutler Hammer
• Condition: New / Unused
• Connection Type: Bolt-On
• Warranty: 1 Year
• Series / Frame Family: EG Frame Series
• Standard Lug Type: Line and Load End Terminals

Important Note

The product image is for identification purposes only and may not reflect the exact configuration. Accessories ordered with the breaker can be installed at no additional cost—please specify your requirements in the order notes. Always verify compatibility and technical specifications with official Eaton documentation before installation.
