Eaton FG3090S18 90A 3P Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton FG3090S18 is a durable EG frame molded case circuit breaker engineered for dependable protection of electrical systems. Equipped with a thermal magnetic non-interchangeable trip unit, it provides accurate overload and short-circuit protection for industrial and commercial applications. This breaker includes a 12–24 VAC/VDC shunt trip pre-installed, right pole mounted with rear exit, and standard line/load terminals, allowing for flexible installation and easy integration into your electrical system. It offers high interrupting capacity while maintaining reliable performance at rated conditions.

Product Specification

• Brand: Eaton / Cutler Hammer
• Frame Type: EG
• Trip Unit: Thermal Magnetic, Non-interchangeable
• Mount Type: Bolt-On
• Amperage Rating: 90A
• Number of Poles: 3
• Shunt Trip: 12–24 VAC/VDC Installed (S18 Option)
• Pole Mount: Right Pole Mounted, Exiting Rear
• Line/Load Terminals: Standard

Technical Specification

• Configuration: S18 Option
• Connection Type: Bolt-On
• Trip Unit Function: Thermal Magnetic
• Rated Temperature: 40°C
• Warranty: One Year
• Accessories Installation: Available at no additional cost with order

Voltage and Ratings

• Voltage Rating: 600VAC @ 50/60Hz
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 600VAC

Product Data

• Product Type: Molded Case Circuit Breaker
• Base Model Image: For identification purposes only
• Line and Load End Terminals: Standard
• Installation: Accessories installed per customer specification
• Poles: 3

Important Note

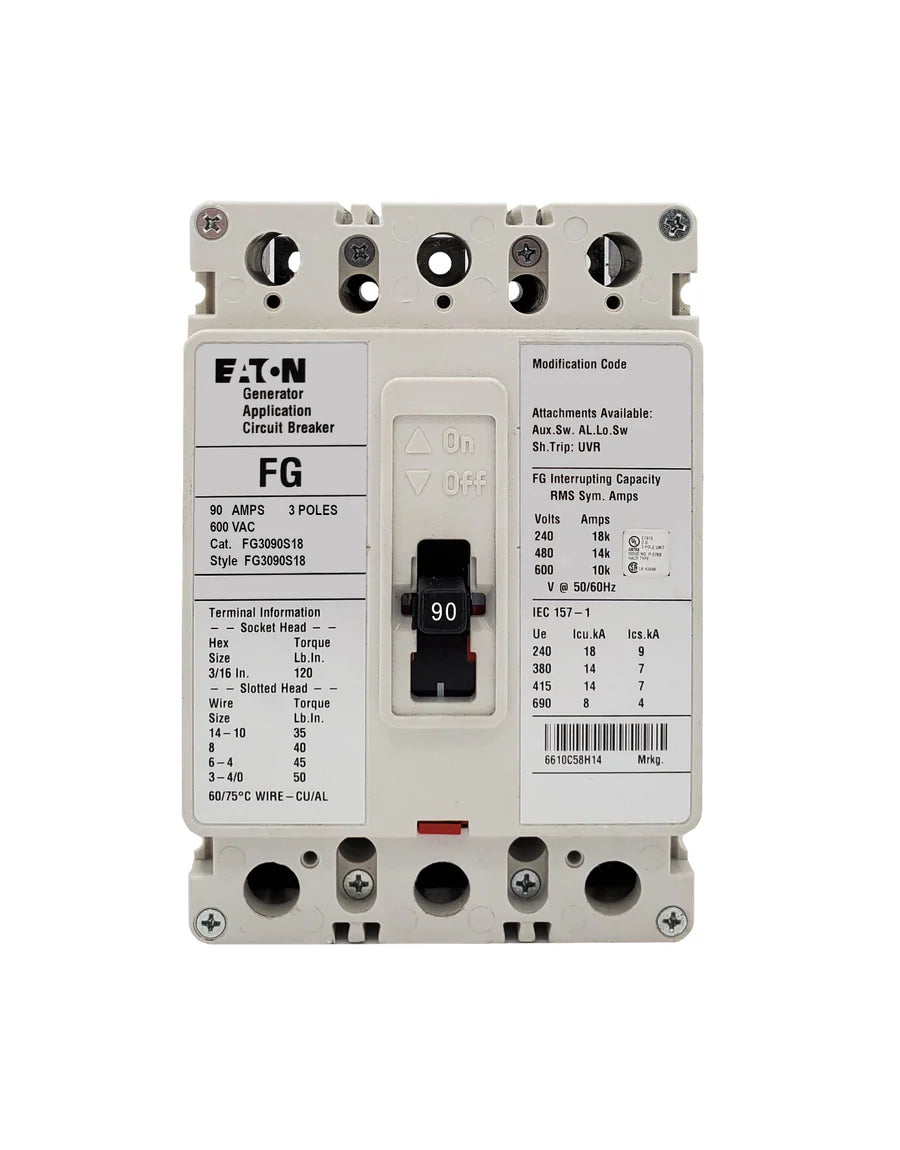

This product image represents the base model and is for identification purposes only. If you are purchasing accessories along with the breaker, we will install them according to your specifications at no additional cost. Please provide all necessary configuration details in the order comment box during checkout to ensure proper assembly.
