Eaton FG3100 100A 3P Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton FG3100 is a reliable EG frame molded case circuit breaker designed for industrial and commercial electrical protection. Equipped with a thermal magnetic non-interchangeable trip unit, it provides accurate overload and short-circuit protection for systems operating up to 600VAC. With standard line and load end terminals, the breaker is easy to install and ensures consistent performance under rated conditions, making it a robust choice for dependable circuit protection.

Product Specification

• Brand: Eaton / Cutler Hammer
• Frame Type: EG
• Trip Unit: Thermal Magnetic, Non-interchangeable
• Mount Type: Bolt-On
• Amperage Rating: 100A
• Number of Poles: 3
• Line/Load Terminals: Standard

Technical Specification

• Connection Type: Bolt-On
• Trip Unit Function: Thermal Magnetic
• Rated Temperature: 40°C
• Warranty: One Year
• Accessories Installation: Available at no additional cost with order

Voltage and Ratings

• Voltage Rating: 600VAC @ 50/60Hz
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 600VAC

Product Data

• Product Type: Molded Case Circuit Breaker

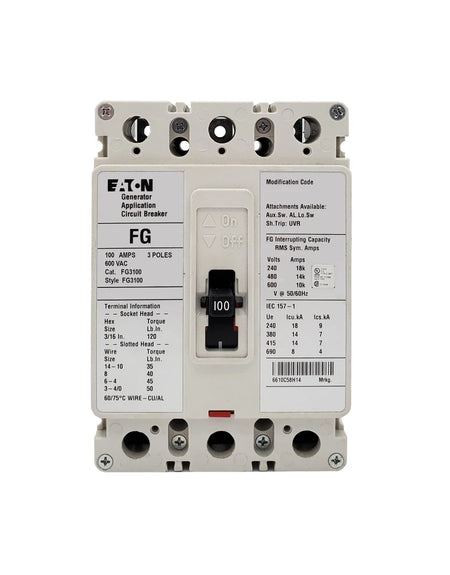

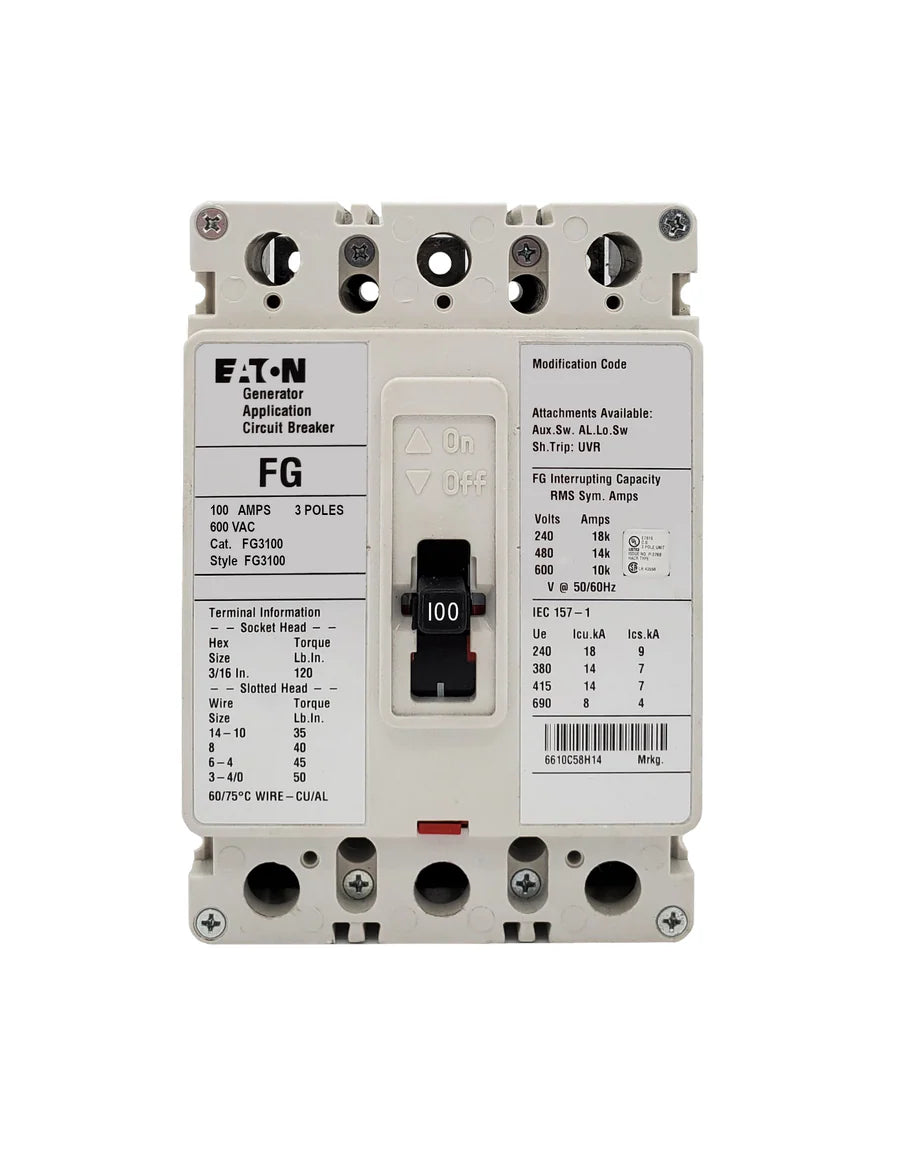

• Base Model Image: For identification purposes only
• Line and Load End Terminals: Standard
• Poles: 3

Important Note

This product image represents the base model and is for identification purposes only. If you are purchasing accessories along with the breaker, we will install them according to your specifications at no additional cost. Please provide all necessary configuration details in the order comment box during checkout to ensure proper assembly.
