Eaton FG3125 125A 3P Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton FG3125 is a robust EG frame molded case circuit breaker designed for industrial and commercial electrical protection. Featuring a thermal magnetic non-interchangeable trip unit, it provides precise overload and short-circuit protection. With a 3-pole configuration and standard line and load end terminals, this breaker ensures easy installation and reliable performance under rated conditions.

Product Specification

• Brand: Eaton / Cutler Hammer
• Frame Type: EG
• Trip Unit: Thermal Magnetic, Non-interchangeable
• Mount Type: Bolt-On
• Amperage Rating: 125A
• Number of Poles: 3
• Line/Load Terminals: Standard

Technical Specification

• Connection Type: Bolt-On
• Trip Unit Function: Thermal Magnetic
• Rated Temperature: 40°C
• Warranty: One Year
• Accessories Installation: Available at no additional cost with order

Voltage and Ratings

• Voltage Rating: 600VAC @ 50/60Hz
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 600VAC

Product Data

• Product Type: Molded Case Circuit Breaker

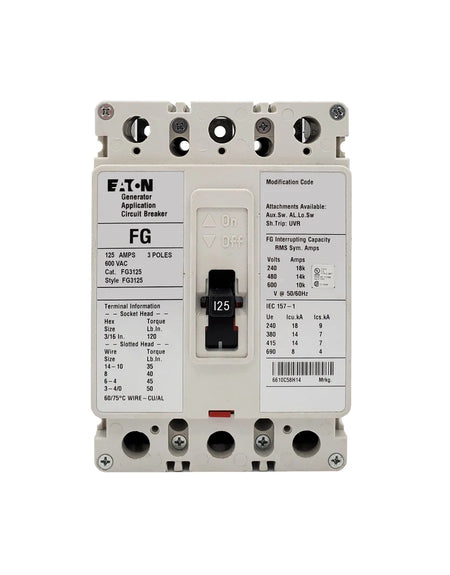

• Base Model Image: For identification purposes only
• Line and Load End Terminals: Standard
• Poles: 3

Important Note

This product image represents the base model and is for identification purposes only. If you are purchasing accessories along with the breaker, we will install them according to your specifications at no additional cost. Please provide all necessary configuration details in the order comment box during checkout to ensure proper assembly.
