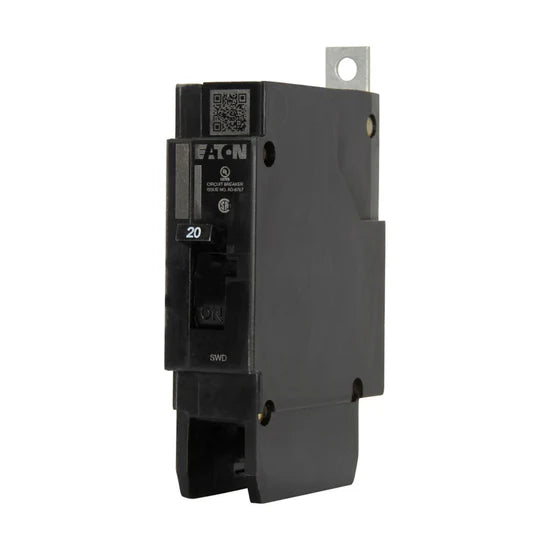

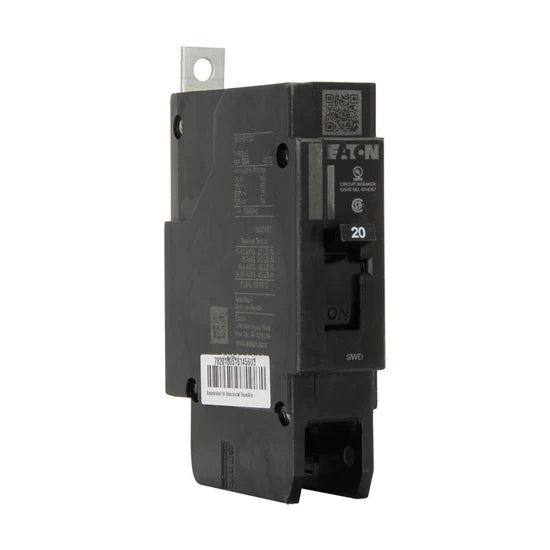

Eaton GHB1020 20A 1-Pole Thermal Magnetic – Bolt-On – 277V/125V

The Eaton GHB1020 20A 1-Pole Thermal Magnetic – Bolt-On – 277V/125V circuit breaker delivers reliable 20 Amp, 1-pole overcurrent protection for commercial and industrial 277V AC or 125V DC systems. Designed as part of Eaton’s Series C G-frame molded case breakers, it features a 14 kAIC interrupt rating and fixed thermal-magnetic trip settings for dependable safety. The bolt-on mounting provides secure installation in panelboards, and the breaker supports copper and aluminum conductors from #14–10 AWG, ensuring durable and efficient performance in demanding applications.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 277 Volts AC / 125 Volts DC
• Interrupting Capacity: 14 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Thermal Magnetic
• Number of Poles: 1-Pole
• Mounting Type: Bolt-On
• Product Range: Series C (G-frame molded case circuit breakers)
• Application: Commercial and industrial panelboard protection
• Ratings: UL Listed

Technical Specifications

• Wire Size: #14–10 AWG Cu/Al
• Operating Mechanism: Thermal-magnetic
• Interrupt Rating: 14 kAIC
• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: GHB1020
• UPC: 786679023624

Dimensions

• • Height: 4.0 in
  • Width: 1.0 in
  • Depth: 2.63 in
  • Weight: 0.65 lbs
