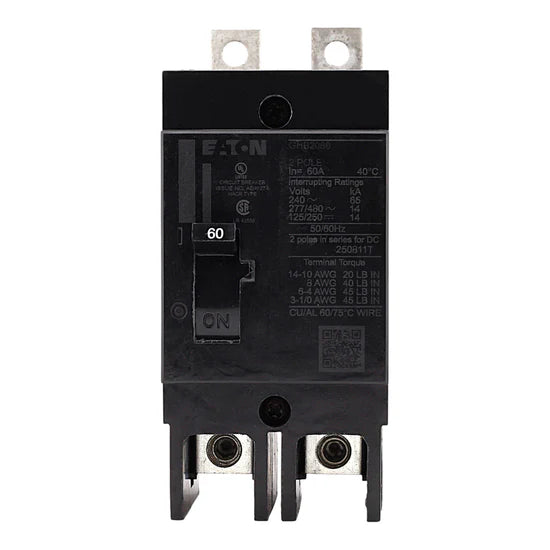

The Eaton GHB2060 Series C molded case circuit breaker provides dependable 60 Amp, 2-pole protection for 480Y/277V AC and 125/250V DC circuits in Series C loadcenters. Featuring fixed thermal and magnetic trip mechanisms, it delivers reliable overcurrent protection with high interrupt ratings of 65 kAIC at 240V AC and 14 kAIC at 480Y/277V AC. Designed for commercial and industrial applications, this breaker includes line/load lug connections and bolt-on mounting for secure installation, ensuring robust and long-lasting circuit safety.
Electrical Ratings:
- Amperage: 60 Amps
- Voltage: 480Y/277V AC, 125/250V DC
- Interrupt Rating: 65 kAIC at 240V AC; 14 kAIC at 480Y/277V AC
- Frequency: 50/60 Hz
Key Specifications:
- Breaker Type: Molded Case Circuit Breaker
- Poles: 2-Pole
- Product Range: Series C
- Trip Type: Fixed Thermal / Fixed Magnetic
- Mounting Mode: Bolt-On
- Terminal Type: Line/Load Lug
- Application: Commercial and industrial overcurrent protection
Technical Specifications:
- Wire Size: #6–350 kcmil Cu/Al
- Tightening Torque: 275 lb-in
- Certifications: UL Listed
Product Data:
-
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: GHB2060
- UPC: 786679172407
- Dimensions: 4.0" H × 2.0" W × 2.63" D
- Weight: 1.15 lbs
