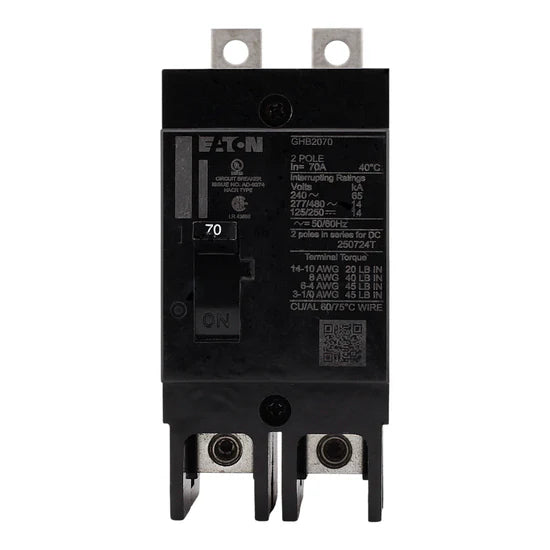

Eaton GHB2070 70A 2-Pole Molded Case Circuit Breaker – Bolt-On – 480Y/277V AC / 125/250V DC

The Eaton GHB2070 Series C molded case circuit breaker provides dependable 70 Amp, 2-pole protection for 480Y/277V AC and 125/250V DC circuits in Series C loadcenters. Featuring fixed thermal and magnetic trip mechanisms, it delivers reliable overcurrent protection with high interrupt ratings of 65 kAIC at 240V AC and 14 kAIC at 480Y/277V AC. Designed for commercial and industrial applications, this breaker includes line/load lug connections and bolt-on mounting for secure installation, ensuring robust and long-lasting circuit safety.

Electrical Ratings:

• Amperage: 70 Amps
• Voltage: 480Y/277V AC, 125/250V DC
• Interrupt Rating: 65 kAIC at 240V AC; 14 kAIC at 480Y/277V AC
• Frequency: 50/60 Hz

Key Specifications:

• Breaker Type: Molded Case Circuit Breaker
• Poles: 2-Pole
• Product Range: Series C
• Trip Type: Fixed Thermal / Fixed Magnetic
• Mounting Mode: Bolt-On
• Terminal Type: Line/Load Lugs
• Application: Commercial and industrial overcurrent protection

Technical Specifications:

• Wire Size: (1) #4–300 kcmil Cu/Al per terminal
• Tightening Torque: 50 lb-in
• Certifications: UL Listed

Product Data:

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: GHB2070
  • UPC: 786679172520
  • Dimensions: 4.0" H × 2.0" W × 2.63" D
  • Weight: 1.15 lbs
