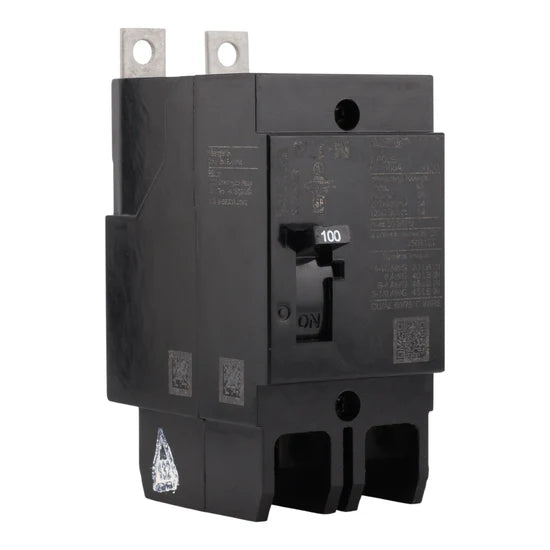

The Eaton GHB2100 Series C molded case circuit breaker provides dependable 100 Amp, 2-pole protection for 480Y/277V AC and 125/250V DC circuits in Series C loadcenters. Featuring line and load lug connections and bolt-on mounting, it delivers reliable overcurrent protection for commercial and industrial applications. With high interrupt ratings of 65 kAIC at 240V AC and 14 kAIC at 480Y/277V AC, this breaker ensures robust performance and long-lasting circuit safety.
Electrical Ratings:
- Amperage: 100 Amps
- Voltage: 480Y/277V AC, 125/250V DC
- Interrupt Rating: 65 kAIC at 240V AC; 14 kAIC at 480Y/277V AC
- Frequency: 50/60 Hz
Key Specifications:
- Breaker Type: Molded Case Circuit Breaker
- Poles: 2-Pole
- Product Range: Series C
- Mounting Mode: Bolt-On
- Terminal Type: Line and Load Lugs
- Application: Commercial and industrial overcurrent protection
Technical Specifications:
- Wire Size: #4 AWG–300 kcmil Cu/Al
- Tightening Torque: 275 lb-in for #4–4/0 AWG, 200 lb-in for 250–300 kcmil
- Certifications: UL Listed, Federal Specifications Classification W-C375B
Product Data:
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: GHB2100
- UPC: 786679911242
- Dimensions: 4.0" H × 2.0" W × 2.63" D
- Weight: 1.15 lbs
