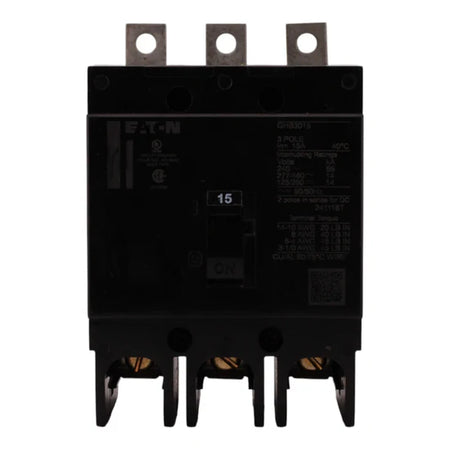

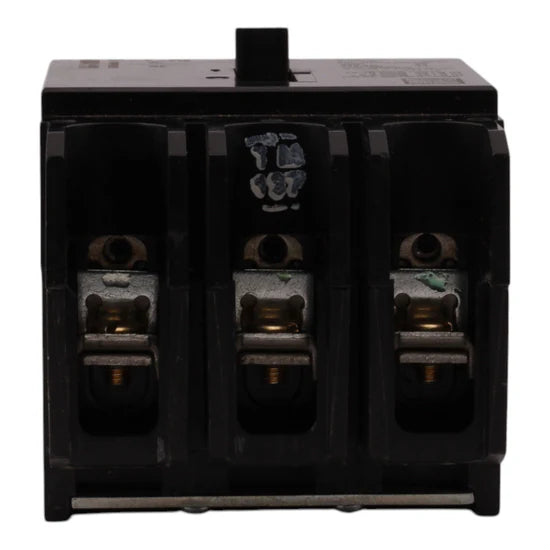

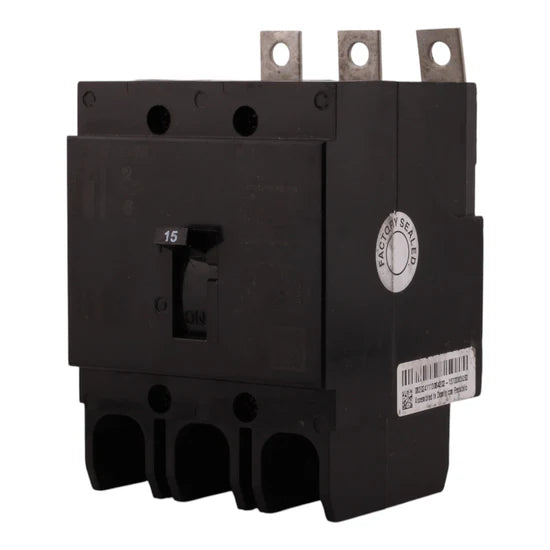

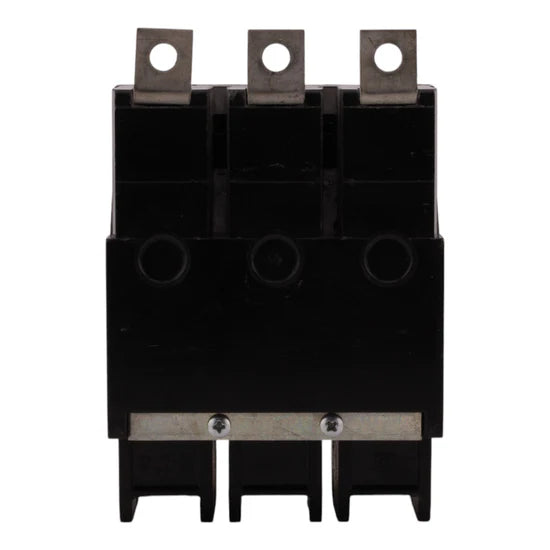

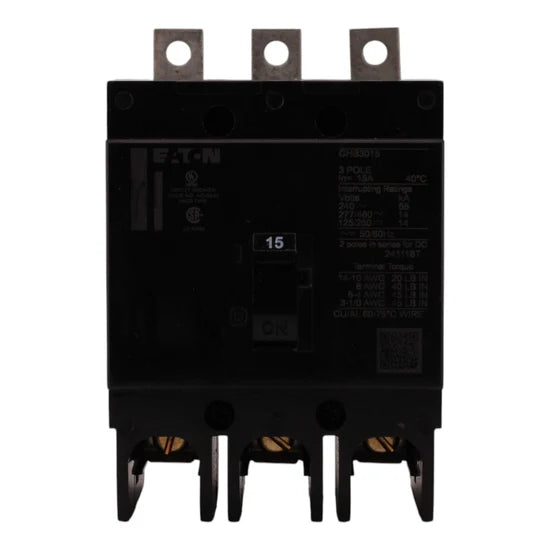

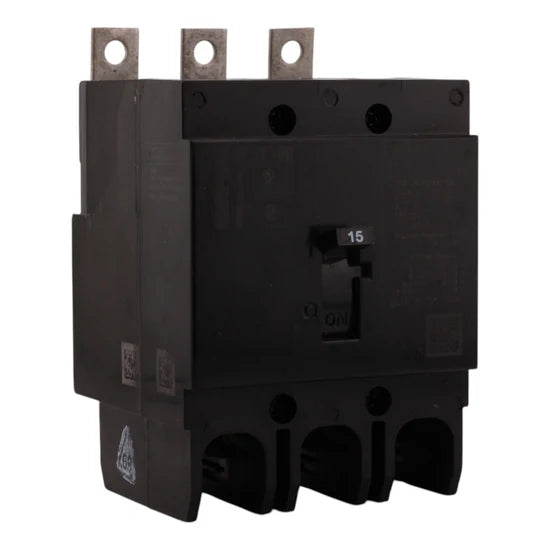

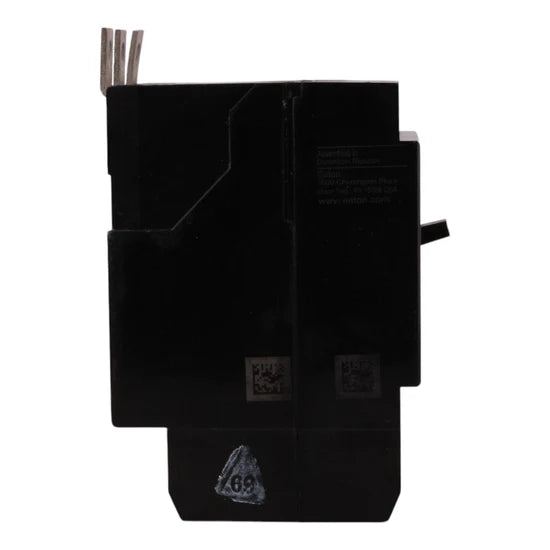

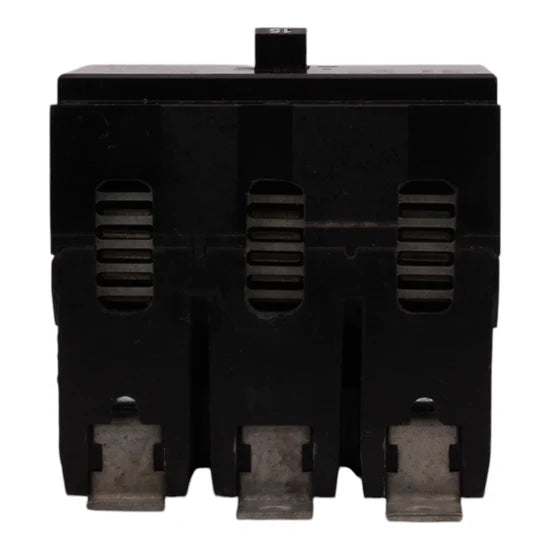

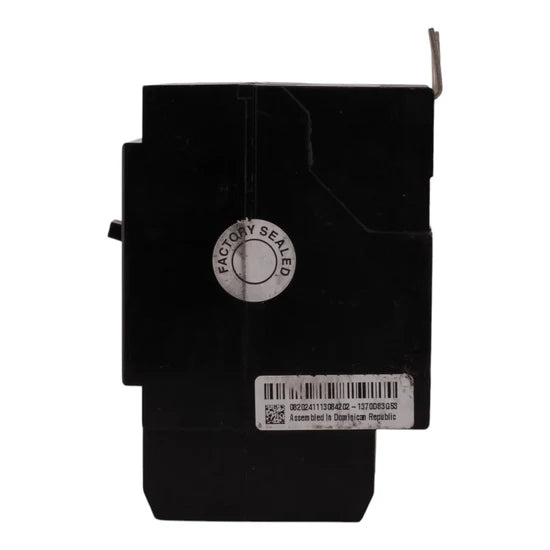

Eaton GHB3015 15A 3-Pole G-Frame Molded Case – 480Y/277V

The Eaton GHB3015 is a 15 Amp, 3-pole G-Frame molded case circuit breaker designed for industrial and commercial applications. It features a fixed thermal/magnetic trip for reliable protection of AC and DC circuits. With high interrupting ratings, it ensures safety and compliance with electrical standards.

Voltage and Rating:

• Current Rating: 15 Amps
• Voltage Rating: 480Y/277V AC, 125/250V DC
• Interrupting Capacity: 65 kAIC at 240V AC, 14 kAIC at 480Y/277V AC
• Frequency: 50/60 Hz

Key Specifications:

• Breaker Type: GHB Complete Molded Case Circuit Breaker
• Circuit Breaker Frame: G-Frame
• Number of Poles: 3-Pole
• Trip Type: Fixed Thermal, Fixed Magnetic (T186)
• Application: Industrial and Commercial branch circuit protection

Physical Specifications:

• • Dimensions (H × W × D): 4 × 3 × 2.63 in
  • Weight: 1.75 lb

Product Data

• • Manufacturer: Eaton
    Model Number: GHB3015
    UPC: 786679911259
