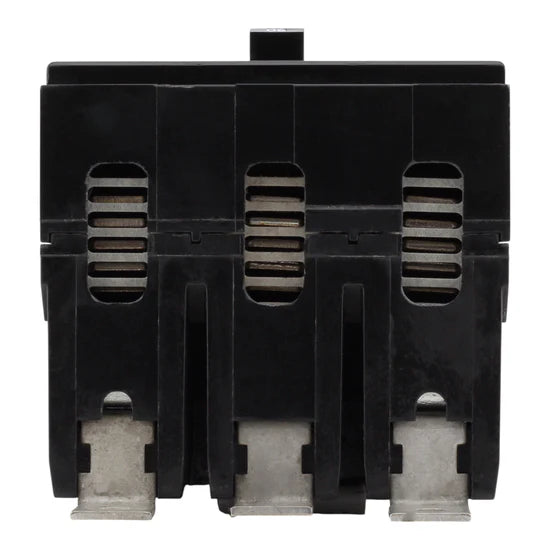

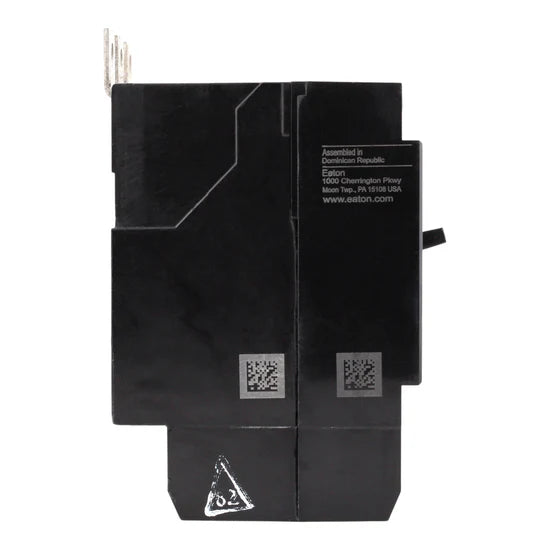

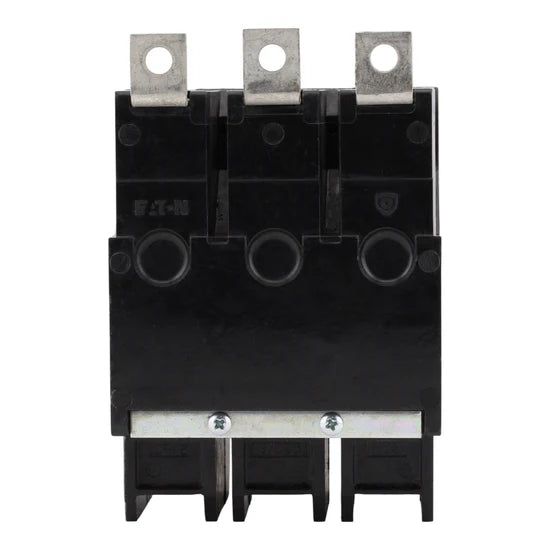

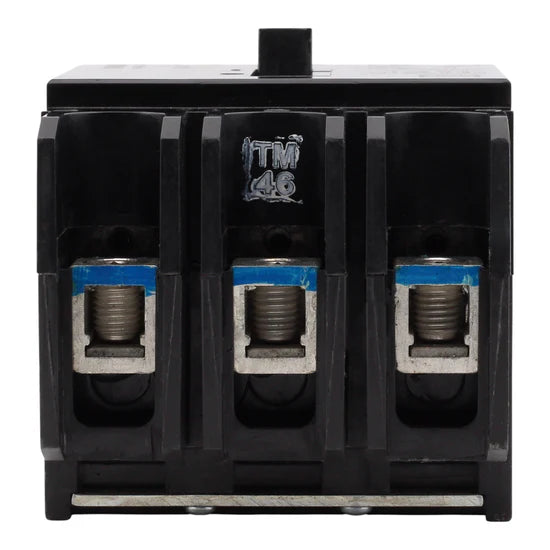

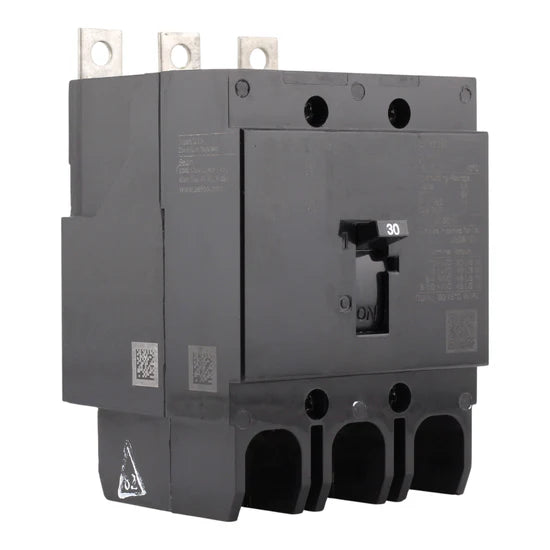

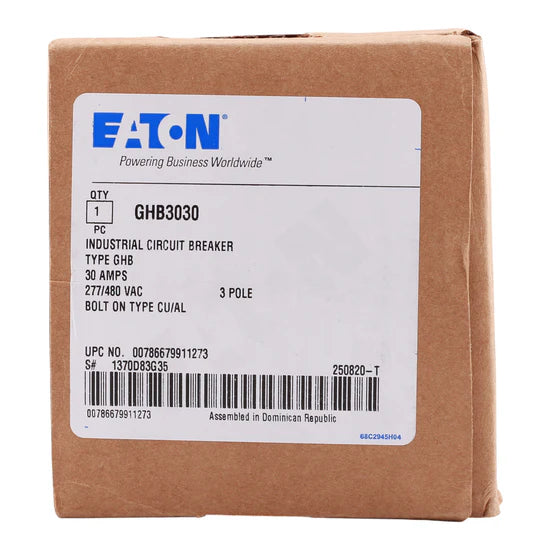

Eaton GHB3030 30A 3-Pole Molded Case Circuit Breaker – Bolt-On – 480Y/277V AC / 125/250V DC

The Eaton GHB3030 Series C molded case circuit breaker provides dependable 30 Amp, 3-pole protection for 480Y/277V AC and 125/250V DC systems. Featuring fixed thermal and fixed magnetic trip mechanisms, it delivers reliable overcurrent protection with high interrupt ratings of 65 kAIC at 240V AC and 14 kAIC at 480Y/277V AC. Designed for commercial and industrial applications, this breaker includes bolt-on mounting for secure installation and robust circuit safety.

Electrical Ratings:

• Amperage: 30 Amps
• Voltage: 480Y/277V AC, 125/250V DC
• Interrupt Rating: 65 kAIC at 240V AC; 14 kAIC at 480Y/277V AC
• Frequency:50/60 Hz

• Key Specificatios:

• Breaker Type: Molded Case Circuit Breaker
• Poles: 3-Pole
• Product Range: Series C
• Trip Type: Fixed Thermal / Fixed Magnetic
• Mounting Mode: Bolt-On
• Application: Commercial and industrial overcurrent protection

1. Technical Specifications:

• Dimensions: 4.0" H × 3.0" W × 2.63" D
• Weight: 1.75 lbs
• Certifications: UL Listed

1. Product Data:

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: GHB3030
  • UPC: 786679911273
