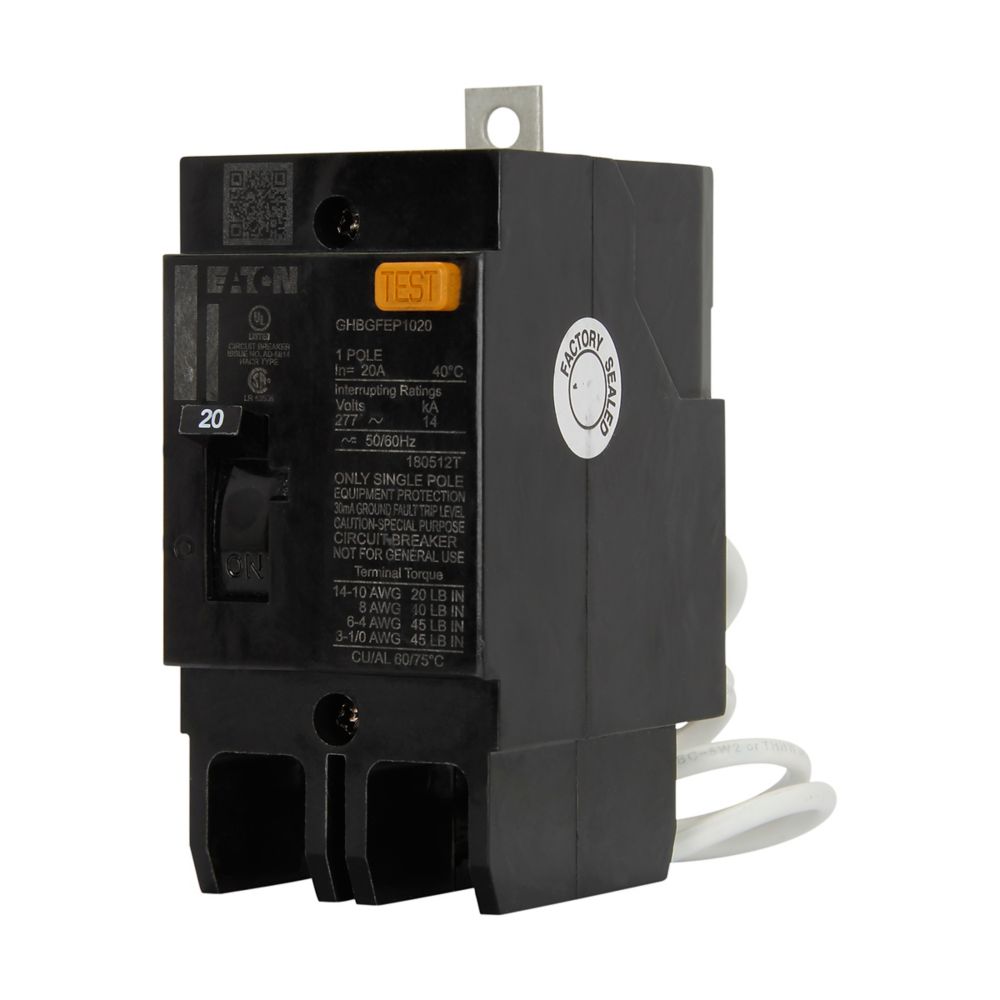

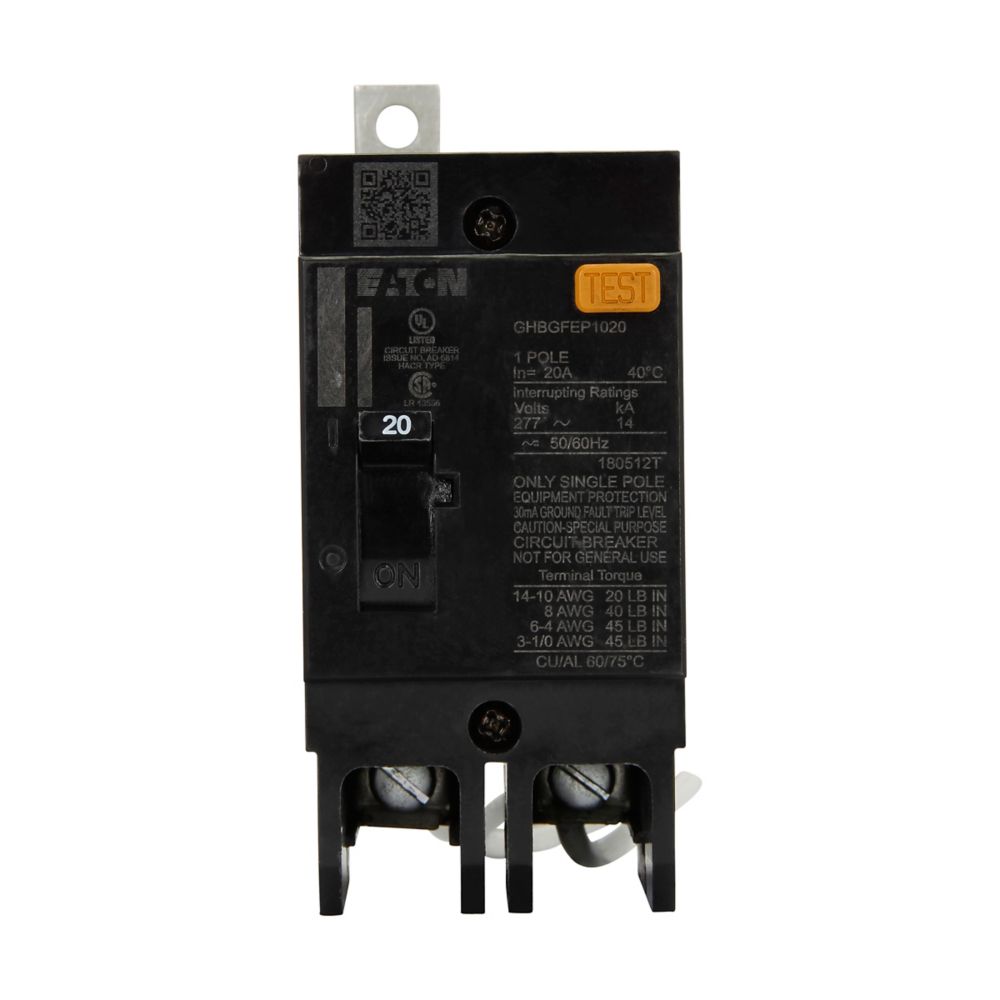

Eaton GHBGFEP1020 Series C Molded Case Circuit Breaker – 20A, 1-Pole, 480Y/277VAC, 14 kAIC

The Eaton GHBGFEP1020 Series C molded case circuit breaker is designed for reliable protection in commercial and industrial electrical distribution systems. It provides dependable thermal magnetic protection against overloads and short circuits, helping ensure safe operation of connected electrical equipment. Built on the Series C platform, it supports higher voltage applications and delivers compact, efficient branch circuit protection for demanding installations.

Electrical Ratings

• Current Rating: 20A
• Voltage Rating: 480Y/277 Vac / 125–250 Vdc
• Frequency Rating: 50/60 Hz
• Number of Poles: Single-pole
• Interrupt Rating: 14 kAIC at 277 Vac
• Trip Type: T186
• Circuit Breaker Frame Type: Series C (Frame G)
• Circuit Breaker Type: GHB

Key Specifications

• Manufacturer: Eaton
• Catalog Number: GHBGFEP1020
• UPC: 786679067437
• Product Type: Molded case circuit breaker
• Series: Series C
• Frame: G
• Standards: UL Listed
• Warranty: Eaton Selling Policy 25-000 (1 year from installation or 18 months from shipment, whichever occurs first)

Physical Details

• Product Length/Depth: 2.63 in
• Product Height: 4 in
• Product Width: 1 in
• Product Weight: 1.5 lb

Product Data

• Application: Commercial and industrial electrical distribution systems
• Installation Use: Series C branch circuit protection assemblies
• Function: Provides overload and short-circuit protection for electrical circuits
• System Compatibility: Designed for Eaton Series C distribution equipment
• Safety Feature: Reliable interrupting capacity ensures dependable protection against electrical fault conditions
