Eaton HFD1020L 20A 1P Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton HFD1020L is a high interrupting capacity molded case circuit breaker designed for demanding industrial and commercial applications. Built with an HFD frame and a thermal magnetic non-interchangeable trip unit, it provides precise and reliable protection against overloads and short circuits. Its compact 1-pole design combined with high fault interruption ratings makes it ideal for systems requiring enhanced safety and performance. Standard line and load terminals ensure easy installation and dependable operation.

Product Specification

• Brand: Eaton / Cutler Hammer
• Frame Type: HFD (F Frame)
• Trip Unit: Thermal Magnetic, Non-interchangeable
• Breaker Type: High Interrupting Capacity
• Mount Type: Bolt-On
• Amperage Rating: 20A
• Number of Poles: 1
• Line/Load Terminals: Standard

Technical Specification

• Connection Type: Bolt-On
• Trip Unit Function: Thermal Magnetic
• Rated Temperature: 40°C
• DC Rating Included
• Warranty: One Year
• Accessories Installation: Available at no additional cost with order

Voltage and Ratings

• Voltage Rating: 600VAC @ 50/60Hz
• DC Voltage Rating: 250VDC
• Interrupting Capacity:
• • 100 kA @ 240VAC
  • 65 kA @ 480VAC
  • 25 kA @ 600VAC
  • 22 kA @ 250VDC

Product Data

• Product Type: Molded Case Circuit Breaker
• High Interrupting Capacity Design

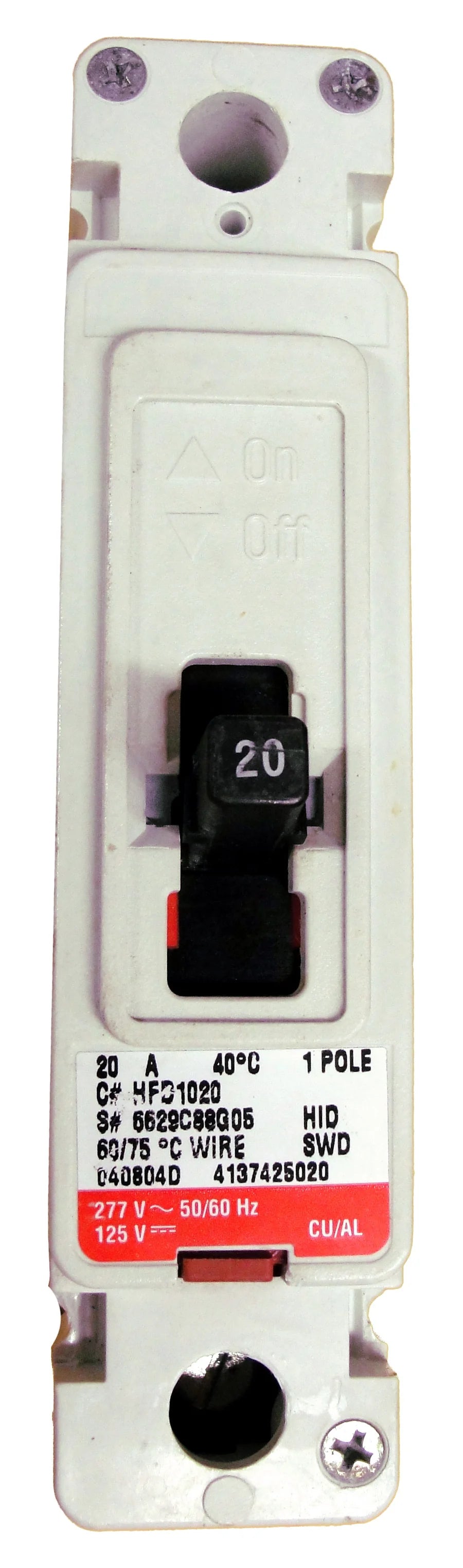

• Base Model Image: For identification purposes only
• Line and Load End Terminals: Standard
• Poles: 1

Important Note

This product image represents the base model and is for identification purposes only. If you are purchasing accessories along with the breaker, we will install them according to your specifications at no additional cost. Please provide all necessary configuration details in the order comment box during checkout to ensure proper assembly.
