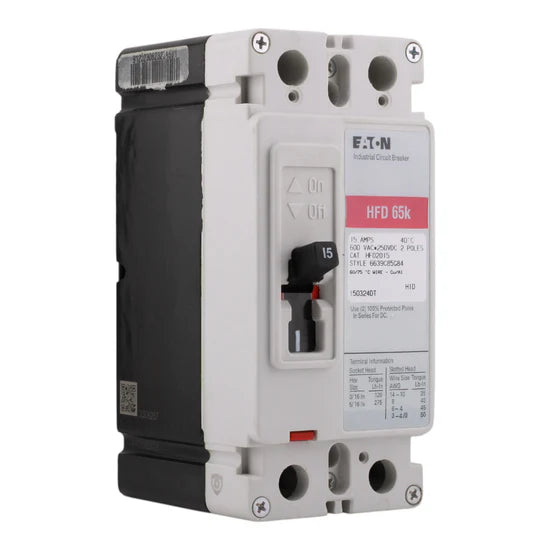

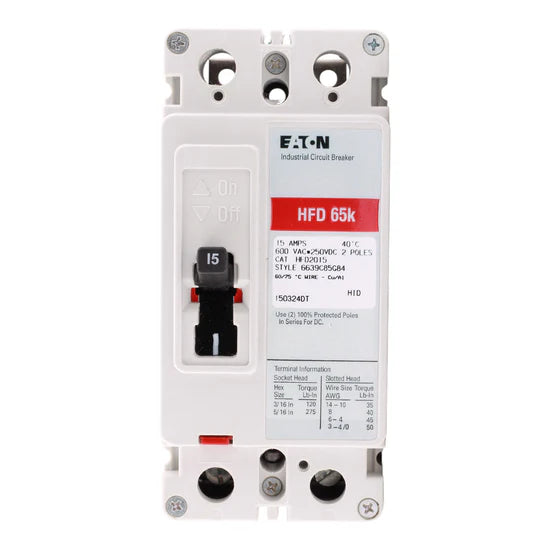

Eaton HFD2015 15A 2-Pole Molded Case – Bolt-On – 600V

The Eaton HFD2015 is a 15 Amp, 2-Pole molded case circuit breaker designed for Series C loadcenters. It provides robust 600V commercial and industrial circuit protection with a fixed thermal-magnetic trip. With high interrupt ratings, it ensures maximum safety for critical applications.

Electrical Specifications

• Breaker Type: Molded Case Circuit Breaker
• Amperage: 15 Amps
• Poles: 2-Pole
• Voltage: 600 Volts AC, 250 Volts DC
• Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Frequency Rating: 50/60 Hz

Mechanical & Mounting Specifications

• Mounting Mode: Bolt-On

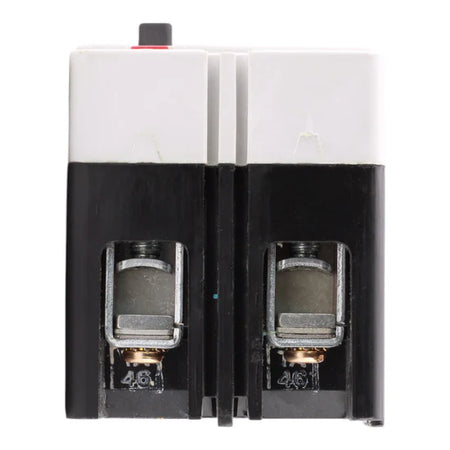

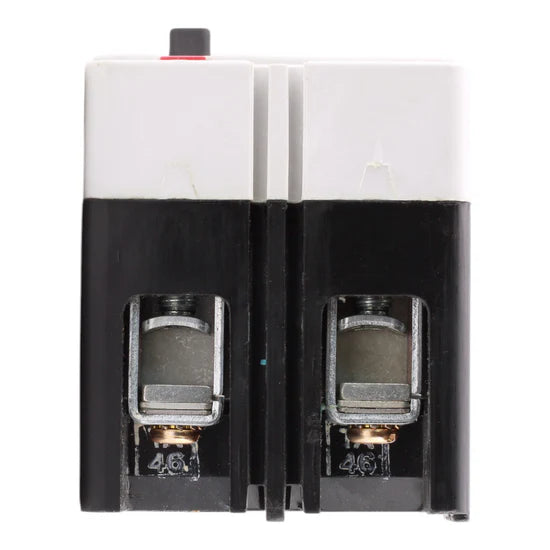

• Connection Terminals: Load side
• Wire Size Range: #14–1/0 AWG Cu/Al
• Tightening Torque: 45 lb-in

Certifications

• UL Listed

Physical Dimensions

• • Height: 6.0 in
  • Width: 2.75 in
  • Depth: 3.38 in
  • Weight: 2.9 lbs

Key Features

• Reliable 15A, 2-Pole protection for 600V circuits
• Fixed thermal-magnetic trip for consistent operation
• High interrupt ratings: 100kA at 240V, 65kA at 480V
• Bolt-on mounting for secure installation in Series C loadcenters
• UL listed for safety and compliance
