Eaton HFD2015L 15A 2P Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton HFD2015L is a high interrupting capacity molded case circuit breaker engineered for industrial and commercial power distribution systems. Built with an HFD (F) frame and a thermal magnetic non-interchangeable trip unit, it delivers precise protection against overloads and short circuits. Its 2-pole configuration enhances application flexibility, while its high fault interruption capability ensures reliable performance in demanding environments. Standard line and load terminals provide ease of installation and consistent operation.

Product Specification

• Brand: Eaton / Cutler Hammer
• Frame Type: HFD (F Frame)
• Trip Unit: Thermal Magnetic, Non-interchangeable
• Breaker Type: High Interrupting Capacity
• Mount Type: Bolt-On
• Amperage Rating: 15A
• Number of Poles: 2
• Line/Load Terminals: Standard

Technical Specification

• Connection Type: Bolt-On
• Trip Unit Function: Thermal Magnetic
• Rated Temperature: 40°C
• DC Rated Breaker
• Warranty: One Year
• Accessories Installation: Available at no additional cost with order

Voltage and Ratings

• Voltage Rating: 600VAC @ 50/60Hz
• DC Voltage Rating: 250VDC
• Interrupting Capacity:
• • 100 kA @ 240VAC
  • 65 kA @ 480VAC
  • 25 kA @ 600VAC
  • 22 kA @ 250VDC

Product Data

• Product Type: Molded Case Circuit Breaker
• High Interrupting Capacity Design

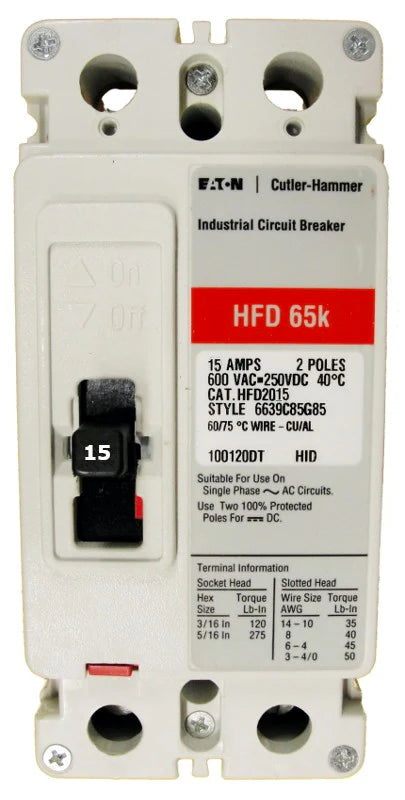

• Base Model Image: For identification purposes only
• Line and Load End Terminals: Standard
• Poles: 2

Important Note

This product image represents the base model and is for identification purposes only. If you are purchasing accessories along with the breaker, we will install them according to your specifications at no additional cost. Please provide all necessary configuration details in the order comment box during checkout to ensure proper assembly.
