Eaton HFD2060L 60A 2P MCCB – Bolt On – 600VAC

The Eaton HFD2060L is a reliable molded case circuit breaker designed to protect electrical circuits in industrial and commercial applications. Featuring a thermal magnetic non-interchangeable trip unit and high interrupting capacity, it provides robust protection against overloads and short circuits. The HFD frame style, combined with standard line and load end terminals, allows for straightforward installation and flexible configuration to meet system requirements.

Product Specification:

• Brand: Eaton / Cutler Hammer
• Model: HFD2060L
• Frame Style: HFD
• Breaker Type: Molded Case Circuit Breaker
• Trip Unit: Thermal Magnetic Non-interchangeable
• Mount Type: Bolt On
• Poles: 2
• Amperage: 60A
• Connection: Bolt On
• Warranty: One Year

Technical Specification:

• High interrupting capacity for enhanced safety
• Line and load end terminals standard
• Compact HFD frame style for easy installation
• Non-interchangeable trip unit ensures consistent protection
• Suitable for industrial and commercial electrical systems

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Interrupting Ratings:
• • 100 kA @ 240VAC
  • 65 kA @ 480VAC
  • 25 kA @ 600VAC
  • 22 kA @ 250VDC

Product Data:

• Frame Type: F
• Standard Lug Type: Line and Load
• Thermal Magnetic Non-interchangeable Trip Unit
• High Interrupting Capacity

Important Note:

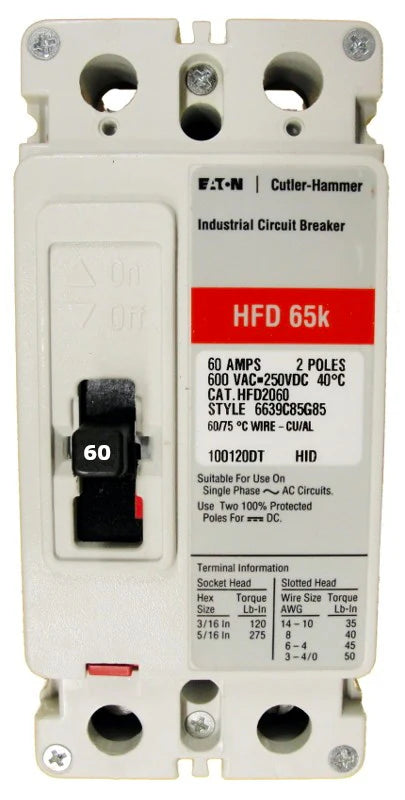

The product image represents the base model and is for identification purposes only. If you are purchasing accessories along with your breaker, Eaton / Cutler Hammer will install them to meet your specific configuration needs at no additional cost. Please provide the necessary details in the order comment box during checkout.
