Eaton HFD2100L 100A 2P MCCB – Bolt On – 600VAC

The Eaton HFD2100L is a high-performance molded case circuit breaker built to protect industrial and commercial electrical circuits. It features a thermal magnetic non-interchangeable trip unit and high interrupting capacity, providing reliable defense against overloads and short circuits. The HFD frame style, with standard line and load end terminals, ensures straightforward installation and compatibility with a variety of system configurations.

Product Specification:

• Brand: Eaton / Cutler Hammer
• Model: HFD2100L
• Frame Style: HFD
• Breaker Type: Molded Case Circuit Breaker
• Trip Unit: Thermal Magnetic Non-interchangeable
• Mount Type: Bolt On
• Poles: 2
• Amperage: 100A
• Connection: Bolt On
• Warranty: One Year

Technical Specification:

• High interrupting capacity for enhanced protection
• Standard line and load end terminals
• Compact HFD frame style for easy installation
• Non-interchangeable trip unit ensures reliable protection
• Suitable for industrial and commercial electrical systems

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Interrupting Ratings:
• • 100 kA @ 240VAC
  • 65 kA @ 480VAC
  • 25 kA @ 600VAC
  • 22 kA @ 250VDC

Product Data:

• Frame Type: F
• Standard Lug Type: Line and Load
• Thermal Magnetic Non-interchangeable Trip Unit
• High Interrupting Capacity

Important Note:

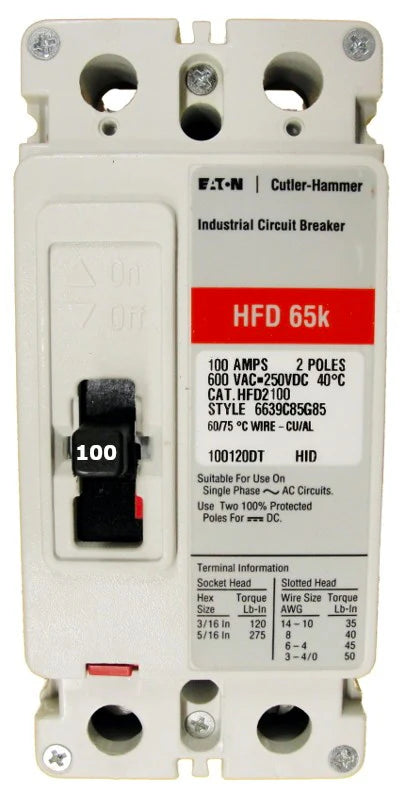

The product image represents the base model and is for identification purposes only. If you are purchasing accessories along with your breaker, Eaton / Cutler Hammer will install them to meet your specific configuration needs at no additional cost. Please provide the required details in the order comment box during checkout.
