Eaton HFD2225L 225A 2P MCCB – Bolt On – 600VAC

The Eaton HFD2225L is a high-capacity molded case circuit breaker designed to deliver reliable protection for industrial and commercial electrical systems. With a thermal magnetic non-interchangeable trip unit and high interrupting capacity, it safeguards circuits against overloads and short circuits. Its HFD frame style, combined with standard line and load end terminals, ensures easy installation and adaptability to a variety of electrical configurations.

Product Specification:

• Brand: Eaton / Cutler Hammer
• Model: HFD2225L
• Frame Style: HFD
• Breaker Type: Molded Case Circuit Breaker
• Trip Unit: Thermal Magnetic Non-interchangeable
• Mount Type: Bolt On
• Poles: 2
• Amperage: 225A
• Connection: Bolt On
• Warranty: One Year

Technical Specification:

• High interrupting capacity for enhanced system protection
• Standard line and load end terminals
• Compact HFD frame style for easy installation
• Non-interchangeable trip unit ensures consistent protection
• Suitable for industrial and commercial electrical systems

Voltage and Ratings:

• Rated Voltage: 600VAC @ 50/60Hz
• Interrupting Ratings:
• • 100 kA @ 240VAC
  • 65 kA @ 480VAC
  • 25 kA @ 600VAC
  • 22 kA @ 250VDC

Product Data:

• Frame Type: F
• Standard Lug Type: Line and Load
• Thermal Magnetic Non-interchangeable Trip Unit
• High Interrupting Capacity

Important Note:

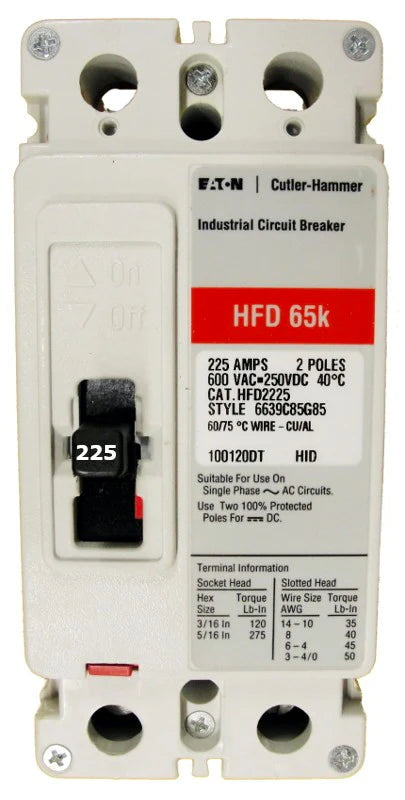

The product image represents the base model and is for identification purposes only. If ordering accessories with your breaker, Eaton / Cutler Hammer will install them to meet your specific configuration needs at no additional cost. Please provide the required information in the order comment box during checkout.
