Eaton JG3225S46 225A 3P Molded Case Generator Circuit Breaker – Bolt-On – 600VAC

The Eaton JG3225S46 molded case generator circuit breaker is engineered to provide reliable protection for commercial and industrial electrical distribution systems. Built on the durable JG frame platform, this 3-pole breaker is rated for 225 Amps at 40°C and features a thermal magnetic interchangeable trip unit with a 350–700 Amp adjustable trip range. This ensures dependable protection against overloads and short circuits while maintaining efficient generator and power distribution system performance. The S46 configuration includes a 12–24V DC shunt trip mounted on the right pole with rear exit wiring, allowing remote tripping capability for enhanced safety and operational control. Standard line and load terminals ensure secure connections and straightforward installation.

Product Specification:

• Brand: Eaton / Cutler Hammer
• Model: JG3225S46
• Frame Type: JG
• Amperage: 225A
• Poles: 3
• Breaker Type: Molded Case Generator Circuit Breaker
• Mount Type: Bolt-On
• Trip Unit Type: Thermal Magnetic Interchangeable
• Configuration: S46 Shunt Trip Option
• Voltage: 600VAC

Technical Specification:

• Trip Setting Range: 350–700A
• Interrupting Capacity:
• • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 600VAC
• Accessory Configuration:
  • S46: 12–24V DC Shunt Trip, Right Pole Mounted, Exiting Rear
• Terminal Type: Standard Line and Load End Terminals
• Mounting Method: Bolt-On Connection

Voltage and Ratings:

• Maximum Rated Voltage: 600VAC
• Rated Current: 225A at 40°C
• Frequency: 50/60 Hz
• Short-Circuit Current Ratings:
  • 18 kA @ 240VAC
  • 14 kA @ 480VAC
  • 10 kA @ 600VAC

Product Data:

• Manufacturer: Eaton / Cutler Hammer
• Warranty: One Year
• Frame Series: JG Frame
• Connection Type: Bolt-On
• Standard Lug Type: Line and Load
• Number of Poles: 3
• Installed Accessory: S46 Shunt Trip (12–24V DC)

Important Note:

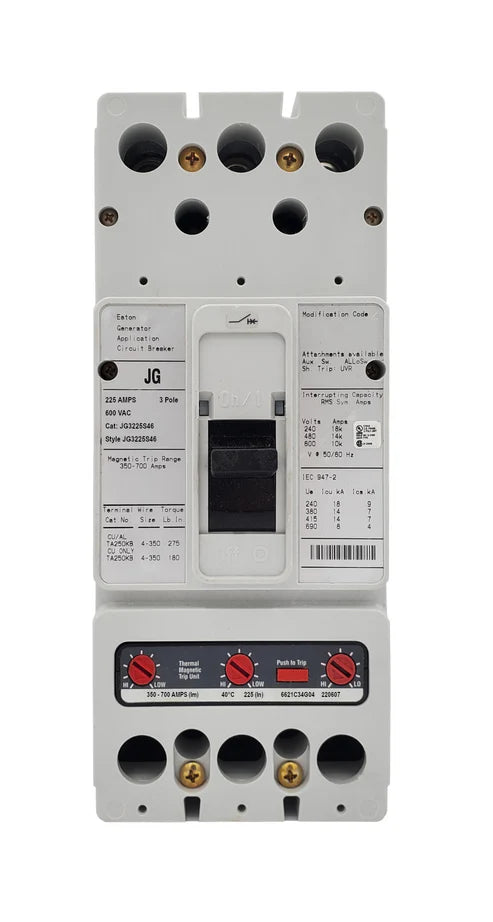

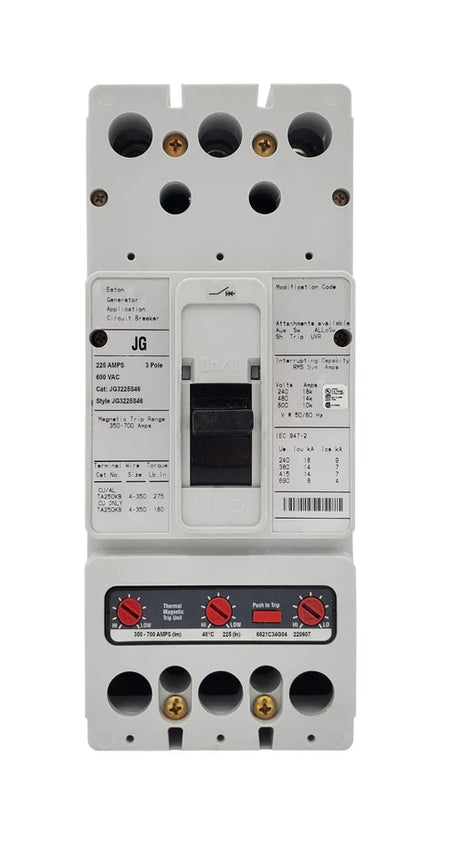

The product image shown represents a base model and is provided for identification purposes only. If accessories are ordered together with the breaker, they will be installed according to your specified configuration at no additional cost. Simply include the required installation details in the order comment box during checkout. Installation should always be performed by a qualified electrician to ensure safe operation and compliance with applicable electrical codes.
